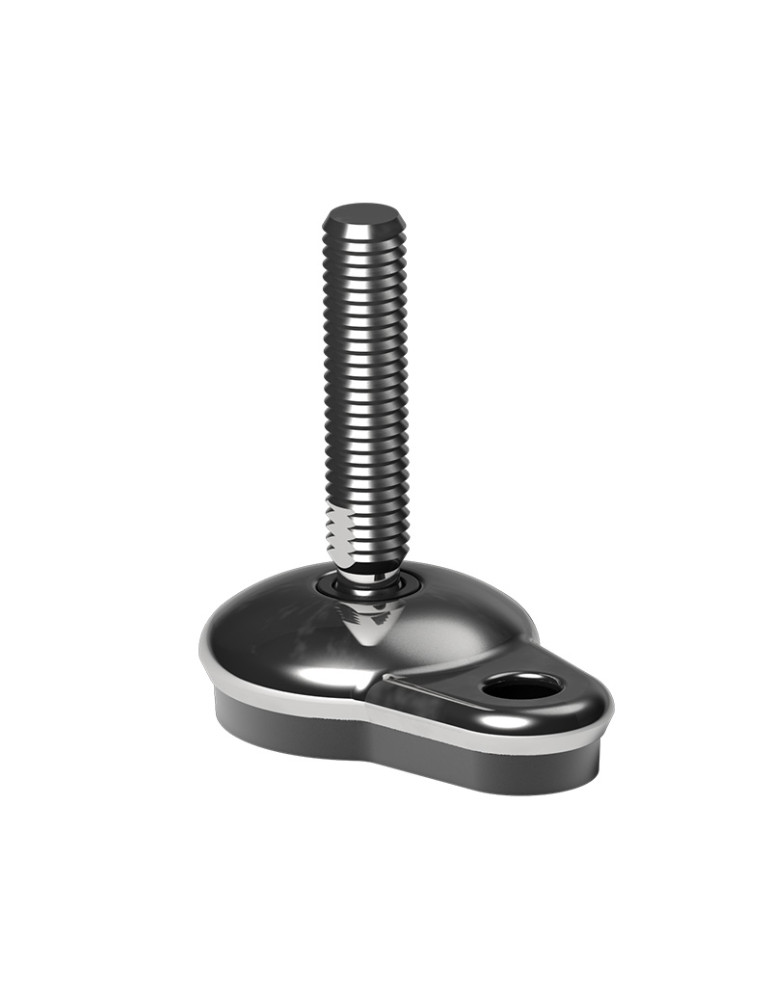

Stainless steel Articulated foot 65x96 mm
Stainless steel Articulated foot 65x96 mm

Stainless steel Articulated foot 65x96 mm

Description

Disinfectable articulated feet with lateral fixation for pharmaceutical, medical or agri-food use

AISI 304 stainless steel stalk

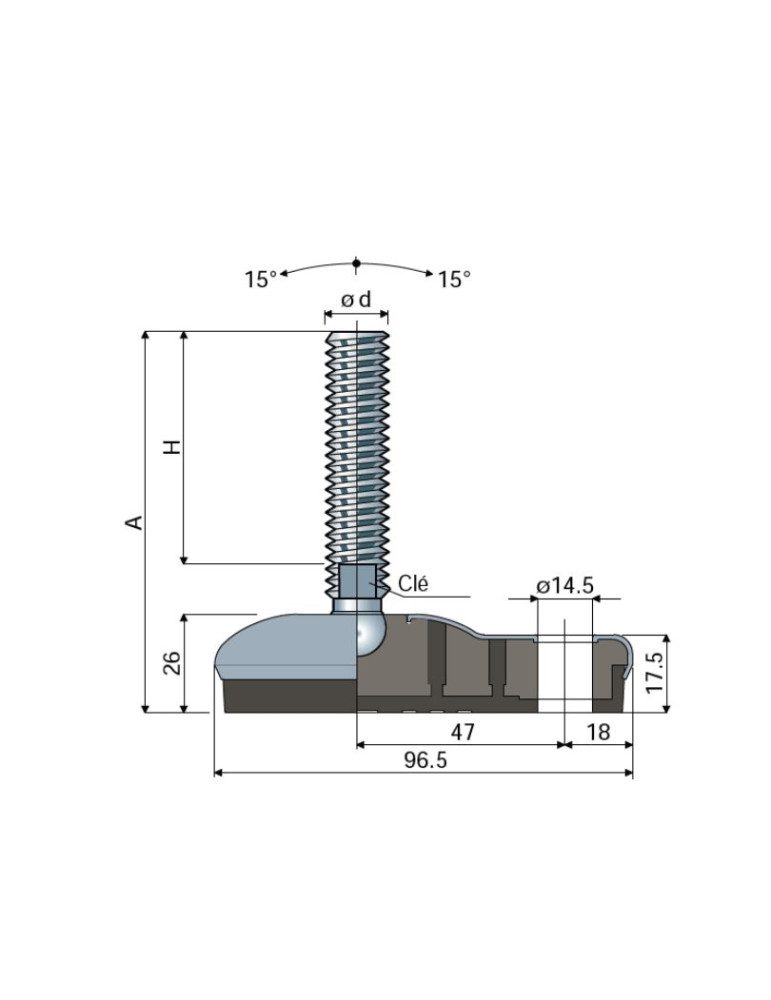

Dimensions 65x96 mm

Materials

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore black color.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Anti-slip: white color.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
120/84840

Specific References

  • PIED-120
Attachments

PIEDS 120

Download (372KB)
21 people are viewing this right now
DOM
120/84840
€25.93
Tax excluded
order: 4
ød: M10x1,5
A (mm): 71
H (mm): 35
Static load max/unit (kg): 1400
Key (mm): 8
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Articulated feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød A (mm) H (mm) Key (mm) Static load max/unit (kg) Unit price Weight Avail. Buy
120/84837 1 M8x1,25 80 45 6 1300 0.165 kg
120/84838 2 M8x1,25 100 65 6 1300 0.172 kg
120/84839 3 M8x1,25 142 107 6 1300 0.185 kg
120/84840 4 M10x1,5 71 35 8 1400 0.17 kg
120/84841 5 M10x1,5 107 70 8 1400 0.188 kg
120/84842 6 M10x1,5 152 115 8 1400 0.209 kg
120/84843 7 M12x1,75 82 43 10 1500 0.188 kg
120/84844 8 M12x1,75 102 63 10 1500 0.202 kg
120/84845 9 M12x1,75 116 77 10 1500 0.211 kg
120/84846 10 M12x1,75 132 93 10 1500 0.224 kg
120/84847 11 M12x1,75 162 123 10 1500 0.245 kg
120/84848 12 M14x2 102 61 12 1600 0.224 kg
120/84849 13 M14x2 132 91 12 1600 0.253 kg
120/84850 14 M14x2 157 116 12 1600 0.274 kg
120/84851 15 M16x2 103 60 13 1700 0.245 kg
120/84852 16 M16x2 133 90 13 1700 0.283 kg
120/84853 17 M16x2 148 105 13 1700 0.3 kg
120/84854 18 M16x2 168 125 13 1700 0.326 kg
120/84855 19 M16x2 198 155 13 1700 0.364 kg
120/84856 20 M16x2 208 165 13 1700 0.381 kg
120/84857 21 M16x2 248 205 13 1700 0.633 kg
