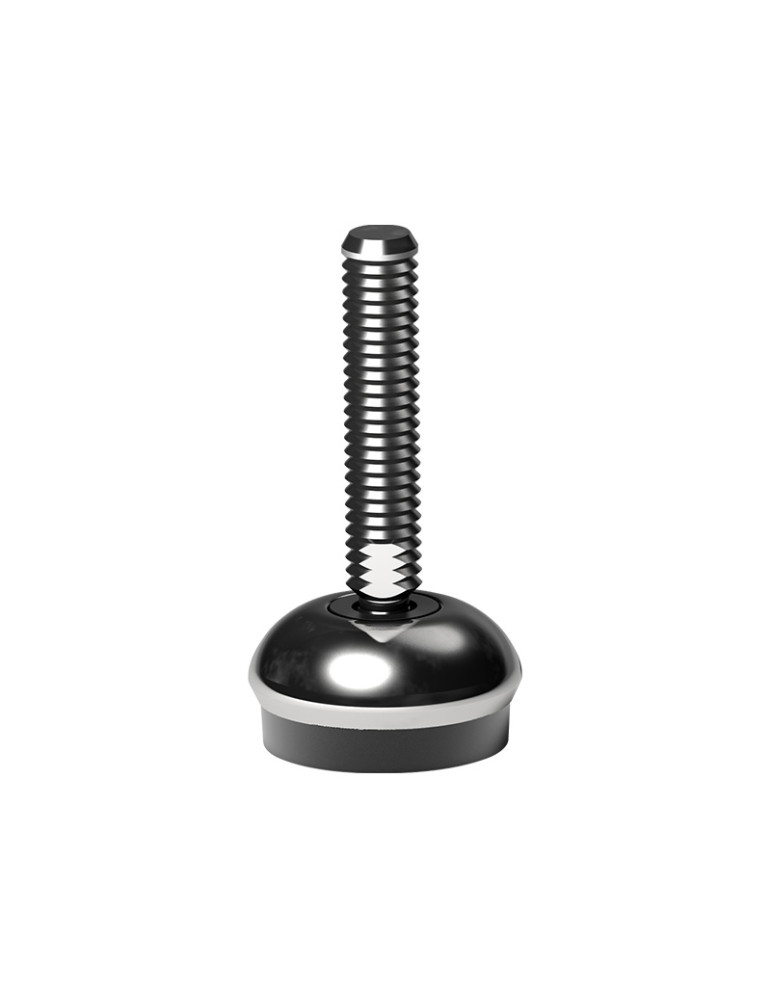

Articulated Stainless steel foot Ø 55
Articulated Stainless steel foot Ø 55

Articulated Stainless steel foot Ø 55

Description

Stainless steel disinfectable feet 304

Diameter 55 mm

Feet for the support of conveyors and machines

Composition

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black color.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Anti slip: white color.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
113/83794
0 Items

Specific References

  • PIED-113
Attachments

PIEDS 113

Download (460.4KB)
19 people are viewing this right now
DOM
113/83794
0 Items
€16.69
Tax excluded
order: 379

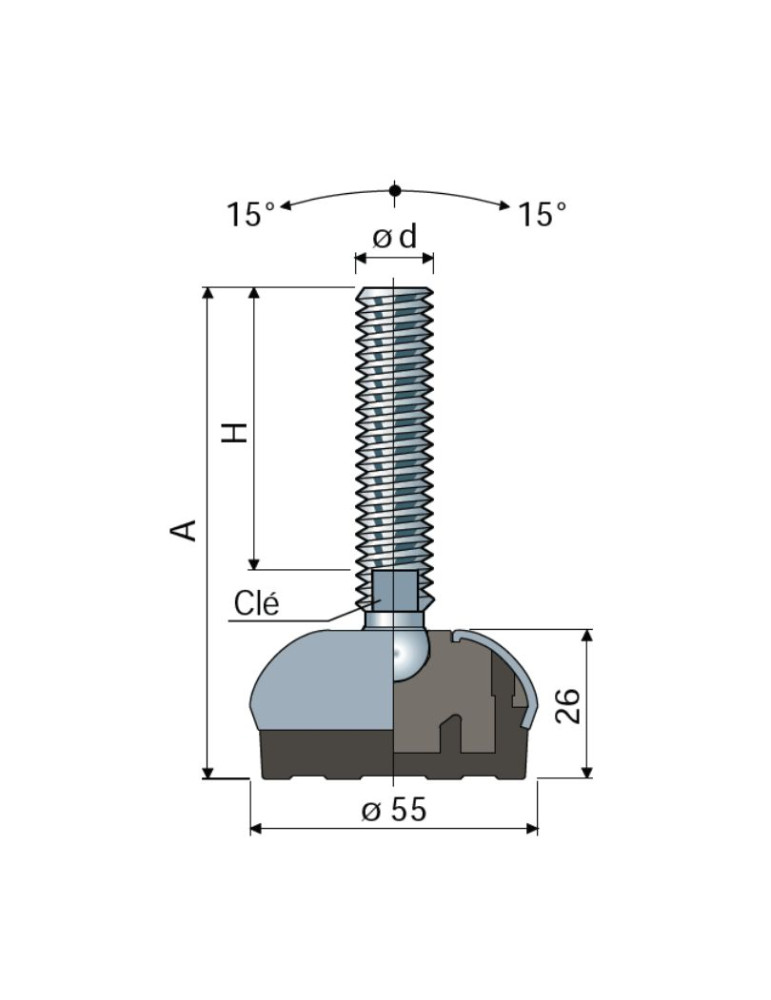

ød: M10x1,5
A (mm): 71
H (mm): 35
Static load max/unit (kg): 1200
Material: Inox 304
Key (mm): 8
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Articulated feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) Key (mm) Static load max/unit (kg) Unit price Weight Avail. Buy
113/83795 377 M10x1,5 Inox 304 107 70 8 1200 0.139 kg
113/83796 378 M10x1,5 Inox 304 152 115 8 1200 0.16 kg
113/83794 379 M10x1,5 Inox 304 71 35 8 1200 0.121 kg
113/83798 380 M12x1,75 Inox 304 102 63 10 1300 0.153 kg
113/83799 381 M12x1,75 Inox 304 116 77 10 1300 0.162 kg
113/83822 382 M12x1,75 Inox 304 132 93 10 1300 0.175 kg
113/83823 383 M12x1,75 Inox 304 162 123 10 1300 0.196 kg
113/83797 384 M12x1,75 Inox 304 82 43 10 1300 0.139 kg
113/83824 385 M14x2 Inox 304 102 61 12 1400 0.175 kg
113/83825 386 M14x2 Inox 304 132 91 12 1400 0.204 kg
113/83826 387 M14x2 Inox 304 157 116 12 1400 0.225 kg
113/83784 388 M16x2 Inox 304 103 60 13 1500 0.205 kg
113/83785 389 M16x2 Inox 304 133 90 13 1500 0.242 kg
113/83786 390 M16x2 Inox 304 148 105 13 1500 0.259 kg
113/83787 391 M16x2 Inox 304 168 125 13 1500 0.286 kg
113/83788 392 M16x2 Inox 304 198 155 13 1500 0.324 kg
113/83789 393 M16x2 Inox 304 208 165 13 1500 0.34 kg
113/83790 394 M16x2 Inox 304 248 205 13 1500 0.405 kg
113/83792 395 M8x1,25 Inox 304 100 65 6 1100 0.123 kg
113/83793 396 M8x1,25 Inox 304 142 107 6 1100 0.136 kg
113/83791 397 M8x1,25 Inox 304 80 45 6 1100 0.116 kg
