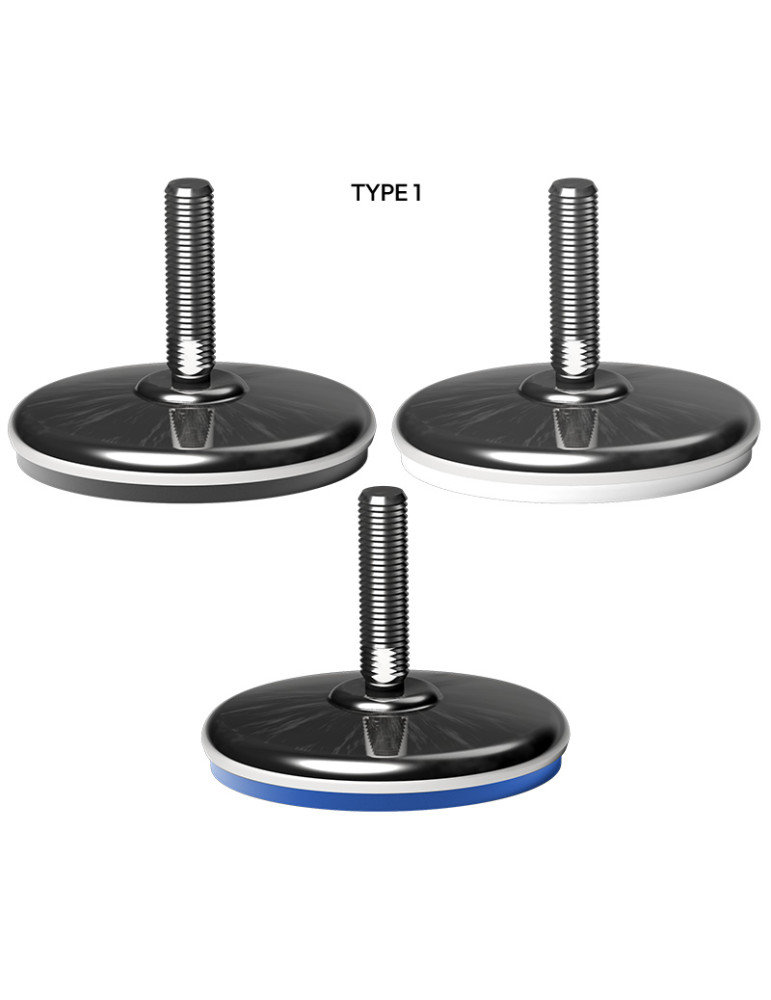

Stainless steel Adjustable foot Ø 150 angle +/- 5°
Stainless steel Adjustable foot Ø 150 angle +/- 5°

Stainless steel Adjustable foot Ø 150 angle +/- 5°

Description

Advertible steerable feet

AISI 304 stainless steel stalk

Type 1 = angle of +/- 5 °

Diameter 150 mm

Materials

Internal soul in reinforced polyamide; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005. Packaging: 8 pieces.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
126/86037

Specific References

  • PIED-126T1
Attachments

PIEDS 126

Download (504.76KB)
21 people are viewing this right now
DOM
126/86037
€103.77
Tax excluded
order: 2

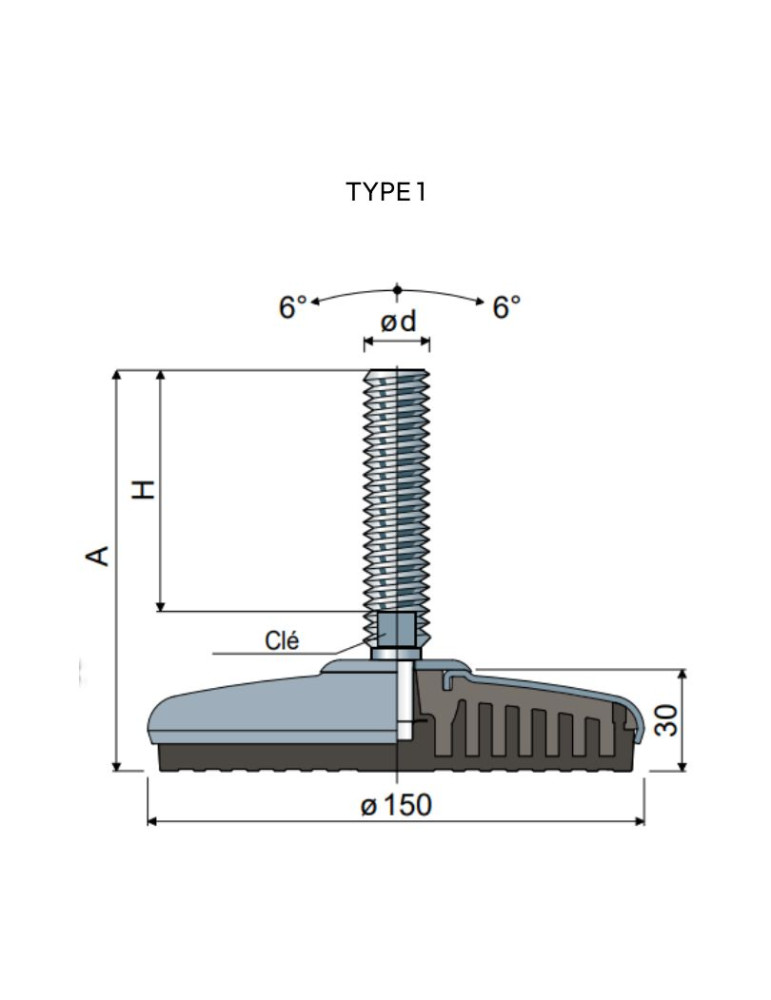

ød: M20x2,5
A (mm): 157
H (mm): 107
Static load max/unit (kg): 4000
Key (mm): 17
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
126/87345 1 M20x2,5 139 89 17 black 4000 1.016 kg
126/86037 2 M20x2,5 157 107 17 black 4000 1.049 kg
126/86038 3 M20x2,5 186 136 17 black 4000 1.089 kg
126/86039 4 M20x2,5 207 157 17 black 4000 1.129 kg
126/86040 5 M20x2,5 240 190 17 black 4000 1.219 kg
126/86041 6 M20x2,5 288 238 17 black 4000 1.359 kg
126/86052 7 M24x3 145 90 19 black 4000 1.089 kg
126/86053 8 M24x3 182 127 19 black 4000 1.229 kg
126/86054 9 M24x3 217 162 19 black 4000 1.309 kg
126/86055 10 M24x3 257 202 19 black 4000 1.449 kg
126/86060 11 M30x3,5 172 125 24 black 4000 1.479 kg
126/86061 12 M30x3,5 232 185 24 black 4000 1.759 kg
126/87346 13 M20x2,5 139 89 17 blanc 4000 1.016 kg
126/86042 14 M20x2,5 157 107 17 blanc 4000 1.049 kg
126/86043 15 M20x2,5 186 136 17 blanc 4000 1.089 kg
126/86044 16 M20x2,5 207 157 17 blanc 4000 1.129 kg
126/86045 17 M20x2,5 240 190 17 blanc 4000 1.219 kg
126/86046 18 M20x2,5 288 238 17 blanc 4000 1.359 kg
126/86056 19 M24x3 145 90 19 blanc 4000 1.089 kg
126/86057 20 M24x3 182 127 19 blanc 4000 1.229 kg
126/86058 21 M24x3 217 162 19 blanc 4000 1.309 kg
126/86059 22 M24x3 257 202 19 blanc 4000 1.449 kg
126/86062 23 M30x3,5 172 125 24 blanc 4000 1.479 kg
126/86063 24 M30x3,5 232 185 24 blanc 4000 1.759 kg
126/88285 25 M20x2,5 139 89 17 bleu 4000 1.04 kg
126/88286 26 M20x2,5 157 107 17 bleu 4000 1.049 kg
126/88287 27 M20x2,5 186 136 17 bleu 4000 1.089 kg
126/88288 28 M20x2,5 207 157 17 bleu 4000 1.129 kg
126/88289 29 M20x2,5 240 190 17 bleu 4000 1.219 kg
126/88290 30 M20x2,5 288 238 17 bleu 4000 1.359 kg
126/88291 31 M24x3 145 90 19 bleu 4000 1.089 kg
126/88292 32 M24x3 182 127 19 bleu 4000 1.229 kg
126/88293 33 M24x3 217 162 19 bleu 4000 1.309 kg
126/88294 34 M24x3 257 202 19 bleu 4000 1.449 kg
126/88295 35 M30x3,5 172 125 24 bleu 4000 1.479 kg
126/88296 36 M30x3,5 232 185 24 bleu 4000 1.759 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
