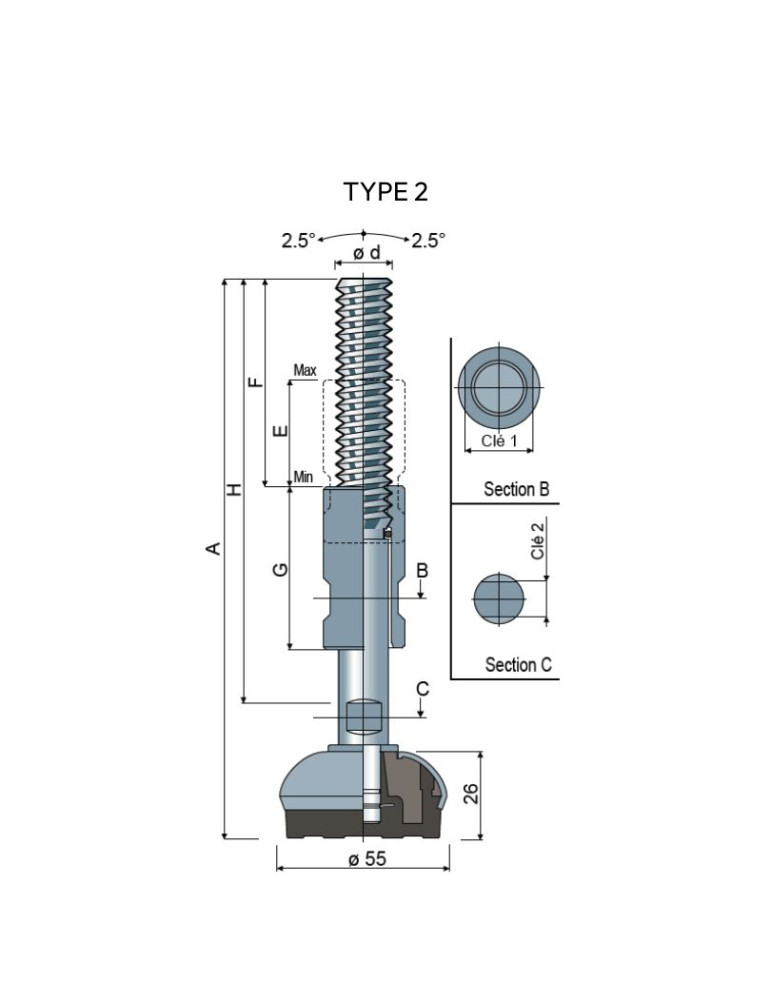

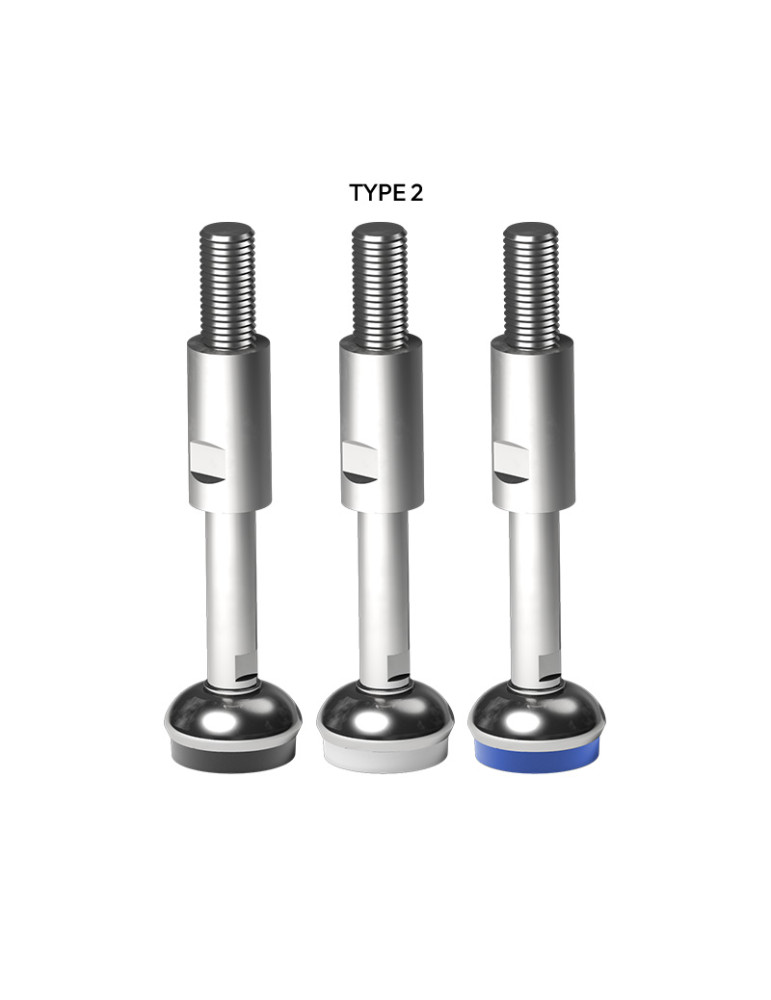

Stainless steel foot Ø 55 angle +/- 2.5°
Stainless steel foot Ø 55 angle +/- 2.5°

Stainless steel foot Ø 55 angle +/- 2.5°

Description

Adjustable footing feet for use in agri-food, medical, pharmaceutical industries ...

AISI 304 stainless steel stalk

Diameter 55 mm

Type 2 = +/- 2.5 ° angle

Feet for the support of conveyors and machines

Composition

reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection. The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
114/88010

Specific References

  • PIED-114T2
Attachments

PIEDS 114

Download (662.4KB)
19 people are viewing this right now
DOM
114/88010
€86.11
Tax excluded
order: 7
ød: M16x2
A (mm): 200
H (mm): 159
Static load max/unit (kg): 2000
Colors: blanc
SOUT-F: 73
SOUT-E: 39
SOUT-G: 60
SOUT-Clé 1: 22
SOUT-Clé 2: 12
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order SOUT-Clé 1 SOUT-Clé 2 ød A (mm) H (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
114/88008 1 22 12 M16x2 200 159 black 2000 0.495 kg
114/88009 2 22 12 M16x2 260 220 black 2000 0.702 kg
114/85164 3 25 13 M20x2,5 200 159 black 2000 0.55 kg
114/85165 4 25 13 M20x2,5 260 220 black 2000 0.827 kg
114/88012 5 30 17 M24x3 200 159 black 2000 0.605 kg
114/88013 6 30 17 M24x3 260 220 black 2000 0.858 kg
114/88010 7 22 12 M16x2 200 159 blanc 2000 0.495 kg
114/88011 8 22 12 M16x2 260 220 blanc 2000 0.702 kg
114/85892 9 25 13 M20x2,5 200 159 blanc 2000 0.55 kg
114/85893 10 25 13 M20x2,5 260 220 blanc 2000 0.827 kg
114/88014 11 30 17 M24x3 200 159 blanc 2000 0.605 kg
114/88015 12 30 17 M24x3 260 220 blanc 2000 0.858 kg
114/88160 13 22 12 M16x2 200 159 bleu 2000 0.495 kg
114/88161 14 22 12 M16x2 260 220 bleu 2000 0.702 kg
114/88162 15 25 13 M20x2,5 200 159 bleu 2000 0.55 kg
114/88163 16 25 13 M20x2,5 260 220 bleu 2000 0.827 kg
114/88164 17 30 17 M24x3 200 159 bleu 2000 0.605 kg
114/88165 18 30 17 M24x3 260 220 bleu 2000 0.858 kg
