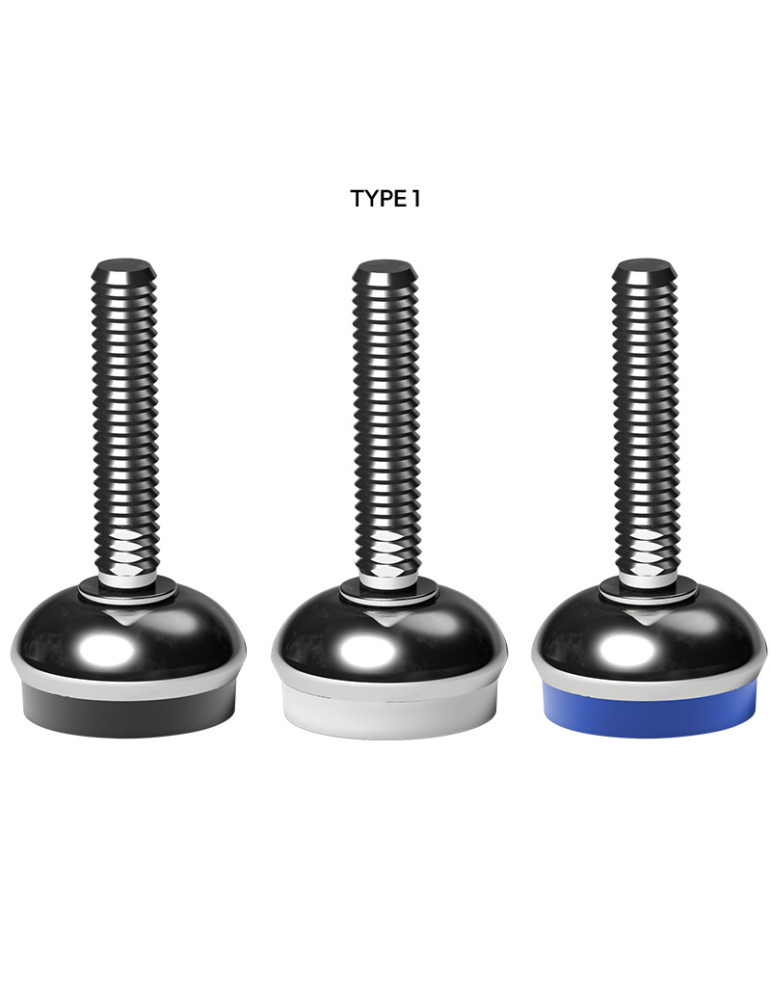

Stainless steel foot Ø 55 angle +/-5°
Stainless steel foot Ø 55 angle +/-5°

Stainless steel foot Ø 55 angle +/-5°

Description

Feet orientable 304 stainless steel disinfectables

Diameter 55 mm

Type 1 = C

Feet for the support of conveyors and machines

Composition

reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection. The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
114/83802

Specific References

  • PIED-114
Attachments

PIEDS 114

Download (662.4KB)
18 people are viewing this right now
DOM
114/83802
€37.55
Tax excluded
order: 400
ød: M12x1,75
A (mm): 110
H (mm): 70
Static load max/unit (kg): 1500
Material: Inox 304
Key (mm): 17
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

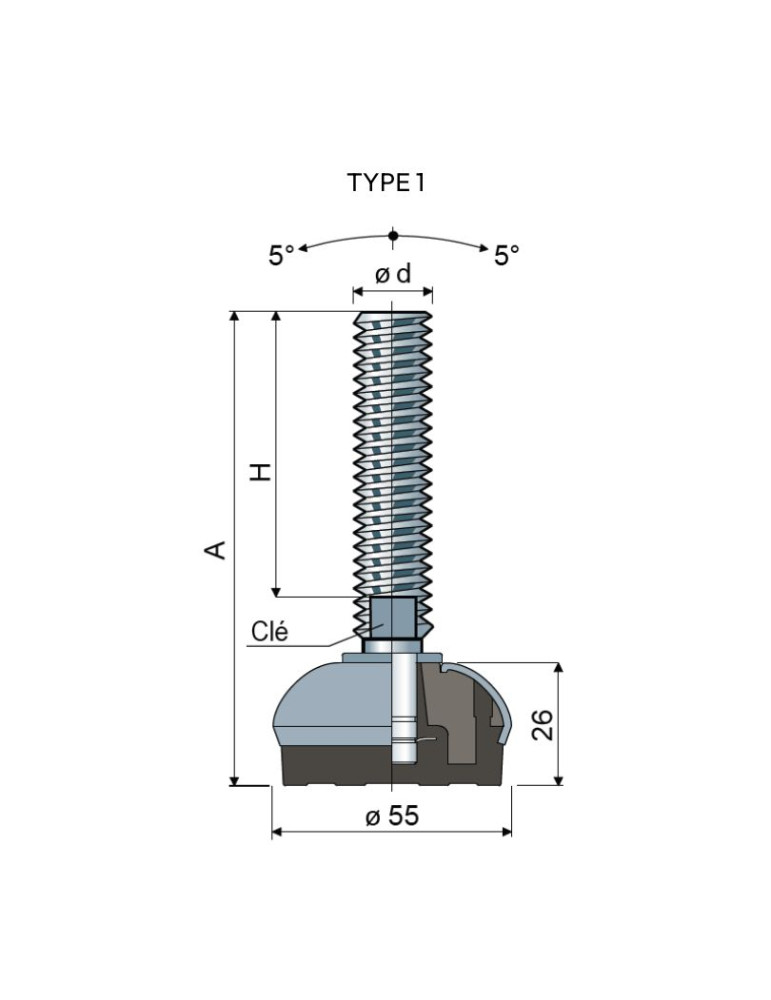

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
114/85874 398 M12x1,75 Inox 304 110 70 17 blanc 1500 0.163 kg
114/88141 399 M12x1,75 Inox 304 110 70 17 bleu 1500 0.163 kg
114/83802 400 M12x1,75 Inox 304 110 70 17 black 1500 0.163 kg
114/83803 401 M14x2 Inox 304 148 108 12 black 2000 0.226 kg
114/85875 402 M14x2 Inox 304 148 108 12 blanc 2000 0.226 kg
114/88142 403 M14x2 Inox 304 148 108 12 bleu 2000 0.226 kg
114/83804 404 M16x2 Inox 304 102 58 13 black 2000 0.222 kg
114/83805 405 M16x2 Inox 304 163 119 13 black 2000 0.3 kg
114/83807 406 M16x2 Inox 304 245 201 13 black 2000 0.407 kg
114/83806 407 M16x2 Inox 304 189 145 13 black 2000 0.304 kg
114/89324 408 M16x2 Inox 304 133 89 13 blanc 2000 0.261 kg
114/85879 409 M16x2 Inox 304 245 201 13 blanc 2000 0.407 kg
114/85878 410 M16x2 Inox 304 189 145 13 blanc 2000 0.304 kg
114/85877 411 M16x2 Inox 304 163 119 13 blanc 2000 0.3 kg
114/85876 412 M16x2 Inox 304 102 58 13 blanc 2000 0.222 kg
114/88146 413 M16x2 Inox 304 245 201 13 bleu 2000 0.407 kg
114/89326 414 M16x2 Inox 304 133 89 13 bleu 2000 0.261 kg
114/88145 415 M16x2 Inox 304 189 145 13 bleu 2000 0.304 kg
114/88144 416 M16x2 Inox 304 163 119 13 bleu 2000 0.3 kg
114/88143 417 M16x2 Inox 304 102 58 13 bleu 2000 0.222 kg
114/89322 418 M16x2 Inox 304 133 89 13 black 2000 0.261 kg
114/85880 419 M18x2,5 Inox 304 201 156 15 blanc 2000 0.393 kg
114/88147 420 M18x2,5 Inox 304 201 156 15 bleu 2000 0.393 kg
114/83808 421 M18x2,5 Inox 304 201 156 15 black 2000 0.393 kg
114/83809 422 M20x2,5 Inox 304 151 107 17 black 2000 0.381 kg
114/83810 423 M20x2,5 Inox 304 180 136 17 black 2000 0.441 kg
114/85885 424 M20x2,5 Inox 304 282 238 17 blanc 2000 0.674 kg
114/85883 425 M20x2,5 Inox 304 201 157 17 blanc 2000 0.482 kg
114/87338 426 M20x2,5 Inox 304 133 89 17 blanc 2000 0.348 kg
114/85884 427 M20x2,5 Inox 304 234 190 17 blanc 2000 0.56 kg
114/85882 428 M20x2,5 Inox 304 180 136 17 blanc 2000 0.441 kg
114/85881 429 M20x2,5 Inox 304 151 107 17 blanc 2000 0.381 kg
114/88152 430 M20x2,5 Inox 304 234 190 17 bleu 2000 0.56 kg
114/88153 431 M20x2,5 Inox 304 282 238 17 bleu 2000 0.674 kg
114/88151 432 M20x2,5 Inox 304 201 157 17 bleu 2000 0.482 kg
114/88150 433 M20x2,5 Inox 304 180 136 17 bleu 2000 0.441 kg
114/88149 434 M20x2,5 Inox 304 151 107 17 bleu 2000 0.381 kg
114/88148 435 M20x2,5 Inox 304 133 89 17 bleu 2000 0.348 kg
114/87337 436 M20x2,5 Inox 304 133 89 17 black 2000 0.348 kg
114/83811 437 M20x2,5 Inox 304 201 157 17 black 2000 0.482 kg
114/83812 438 M20x2,5 Inox 304 234 190 17 black 2000 0.56 kg
114/83813 439 M20x2,5 Inox 304 282 238 17 black 2000 0.674 kg
114/83814 440 M24x3 Inox 304 139 90 13 black 2000 0.448 kg
114/85889 441 M24x3 Inox 304 250 201 13 blanc 2000 0.783 kg
114/85888 442 M24x3 Inox 304 211 162 13 blanc 2000 0.661 kg
114/85887 443 M24x3 Inox 304 176 127 13 blanc 2000 0.579 kg
114/85886 444 M24x3 Inox 304 139 90 13 blanc 2000 0.448 kg
114/88157 445 M24x3 Inox 304 250 201 13 bleu 2000 0.783 kg
114/88156 446 M24x3 Inox 304 211 162 13 bleu 2000 0.661 kg
114/88155 447 M24x3 Inox 304 176 127 13 bleu 2000 0.579 kg
114/88154 448 M24x3 Inox 304 139 90 13 bleu 2000 0.448 kg
114/83815 449 M24x4 Inox 304 176 127 13 black 2000 0.579 kg
114/83816 450 M24x5 Inox 304 211 162 13 black 2000 0.661 kg
114/83817 451 M24x6 Inox 304 250 201 13 black 2000 0.783 kg
114/83818 452 M30x3,5 Inox 304 174 125 13 black 2000 0.829 kg
114/83819 453 M30x3,5 Inox 304 234 185 13 black 2000 1.111 kg
114/85891 454 M30x3,5 Inox 304 234 185 13 blanc 2000 1.111 kg
114/85890 455 M30x3,5 Inox 304 174 125 13 blanc 2000 0.829 kg
114/88159 456 M30x3,5 Inox 304 234 185 13 bleu 2000 1.111 kg
114/88158 457 M30x3,5 Inox 304 174 125 13 bleu 2000 0.829 kg
