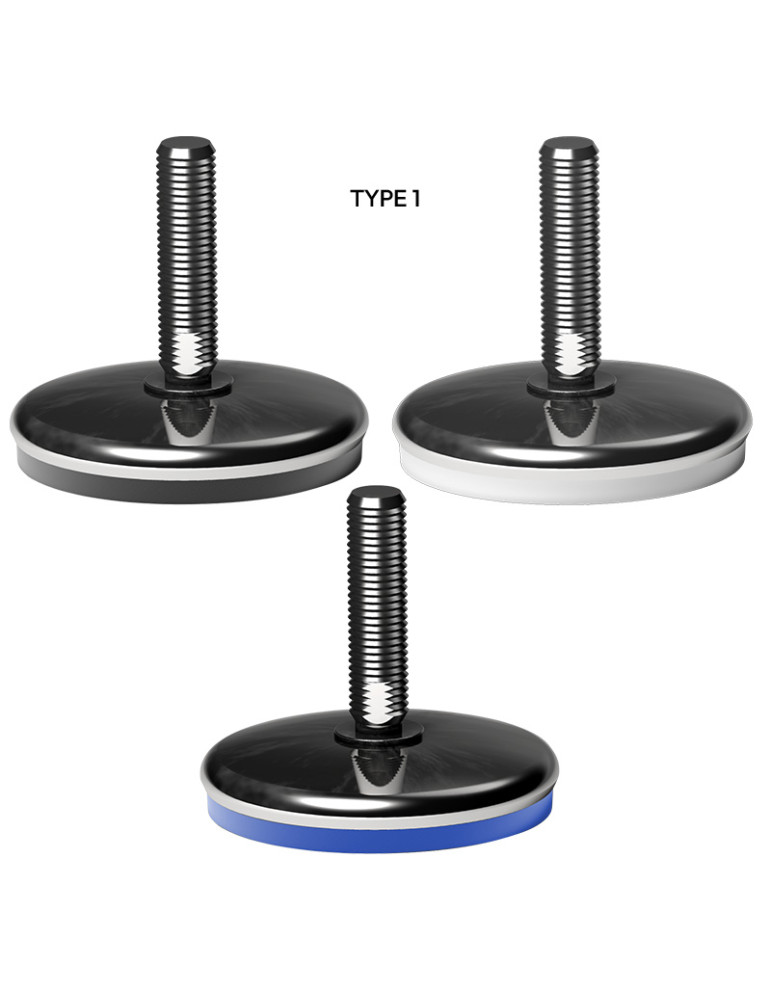

Stainless steel foot Ø 120 angle +/- 5°
Stainless steel foot Ø 120 angle +/- 5°

Stainless steel foot Ø 120 angle +/- 5°

Description

Adjustable steel stainless steel 304 feet

Diameter 120 mm

Type 1 = angle of +/- 5 °

Feet for the support of conveyors and machines

Basic material: Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The moldering anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is a guarantee of high foot disinfection. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
110/83574

Specific References

  • PIED-110
Attachments

PIEDS 110

Download (820.06KB)
20 people are viewing this right now
DOM
110/83574
€48.18
Tax excluded
order: 241
ød: M12x1,75
A (mm): 109
H (mm): 70
Static load max/unit (kg): 1700
Material: Inox 304
Key (mm): 17
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

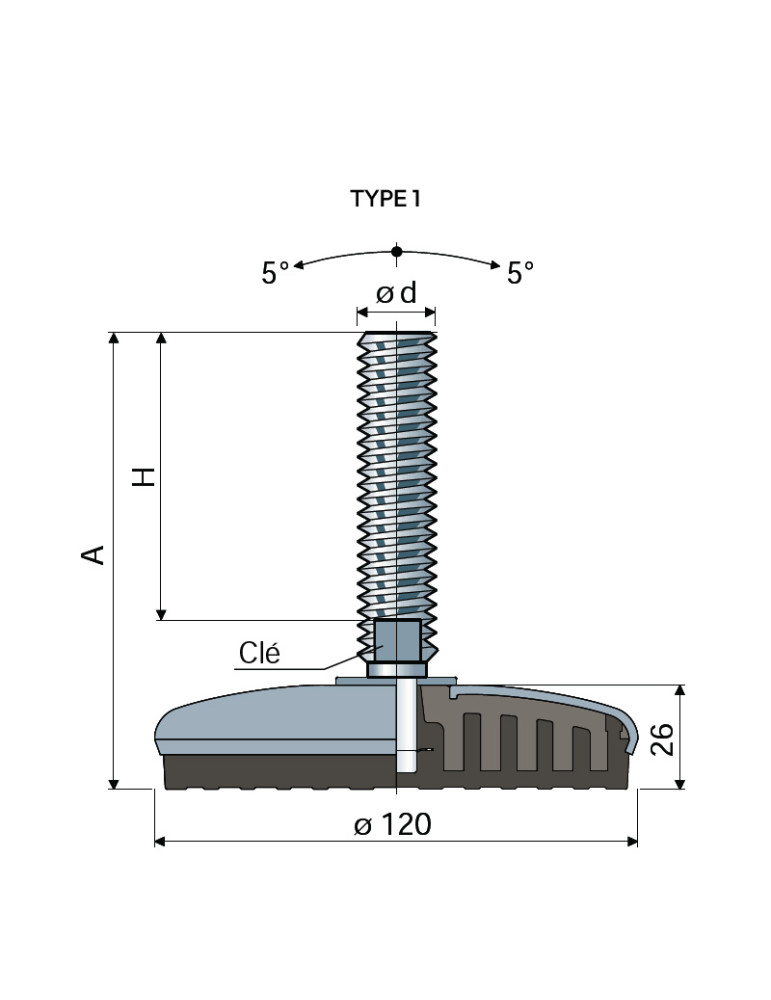

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
110/85949 239 M12x1,75 Inox 304 109 70 17 blanc 1700 0.384 kg
110/88260 240 M12x1,75 Inox 304 109 70 17 bleu 1700 0.384 kg
110/83574 241 M12x1,75 Inox 304 109 70 17 black 1700 0.384 kg
110/85950 242 M14x2 Inox 304 148 108 12 blanc 3000 0.447 kg
110/88261 243 M14x2 Inox 304 148 108 12 bleu 3000 0.447 kg
110/83575 244 M14x2 Inox 304 148 108 12 black 3000 0.447 kg
110/89341 245 M16x2 Inox 304 133 89 13 blanc 3000 0.482 kg
110/85953 246 M16x2 Inox 304 189 145 13 blanc 3000 0.525 kg
110/85952 247 M16x2 Inox 304 163 119 13 blanc 3000 0.521 kg
110/85951 248 M16x2 Inox 304 102 58 13 blanc 3000 0.443 kg
110/85954 249 M16x2 Inox 304 245 201 13 blanc 3000 0.628 kg
110/89342 250 M16x2 Inox 304 133 89 13 bleu 3000 0.482 kg
110/88264 251 M16x2 Inox 304 189 145 13 bleu 3000 0.525 kg
110/88263 252 M16x2 Inox 304 163 119 13 bleu 3000 0.521 kg
110/88262 253 M16x2 Inox 304 102 58 13 bleu 3000 0.443 kg
110/88265 254 M16x2 Inox 304 245 201 13 bleu 3000 0.628 kg
110/89340 255 M16x2 Inox 304 133 89 13 black 3000 0.482 kg
110/83576 256 M16x2 Inox 304 102 58 13 black 3000 0.443 kg
110/83577 257 M16x2 Inox 304 163 119 13 black 3000 0.521 kg
110/83578 258 M16x2 Inox 304 189 145 13 black 3000 0.525 kg
110/83579 259 M16x2 Inox 304 245 201 13 black 3000 0.628 kg
110/85955 260 M18x2,5 Inox 304 201 157 15 blanc 3000 0.627 kg
110/88266 261 M18x2,5 Inox 304 201 157 15 bleu 3000 0.627 kg
110/83580 262 M18x2,5 Inox 304 201 157 15 black 3000 0.627 kg
110/85959 263 M20x2,5 Inox 304 236 190 17 blanc 3000 0.797 kg
110/85958 264 M20x2,5 Inox 304 203 157 17 blanc 3000 0.703 kg
110/85957 265 M20x2,5 Inox 304 182 136 17 blanc 3000 0.662 kg
110/85956 266 M20x2,5 Inox 304 153 107 17 blanc 3000 0.628 kg
110/85960 267 M20x2,5 Inox 304 284 238 17 blanc 3000 0.933 kg
110/87344 268 M20x2,5 Inox 304 135 89 17 blanc 3000 0.595 kg
110/88272 269 M20x2,5 Inox 304 284 238 17 bleu 3000 0.933 kg
110/88270 270 M20x2,5 Inox 304 203 157 17 bleu 3000 0.703 kg
110/88269 271 M20x2,5 Inox 304 182 136 17 bleu 3000 0.662 kg
110/88268 272 M20x2,5 Inox 304 153 107 17 bleu 3000 0.628 kg
110/88267 273 M20x2,5 Inox 304 135 89 17 bleu 3000 0.595 kg
110/88271 274 M20x2,5 Inox 304 236 190 17 bleu 3000 0.797 kg
110/87343 275 M20x2,5 Inox 304 135 89 17 black 3000 0.595 kg
110/83581 276 M20x2,5 Inox 304 153 107 17 black 3000 0.628 kg
110/83582 277 M20x2,5 Inox 304 182 136 17 black 3000 0.662 kg
110/83583 278 M20x2,5 Inox 304 203 157 17 black 3000 0.703 kg
110/83585 279 M20x2,5 Inox 304 284 238 17 black 3000 0.933 kg
110/83584 280 M20x2,5 Inox 304 236 190 17 black 3000 0.797 kg
110/85963 281 M24x3 Inox 304 211 162 19 blanc 3000 0.882 kg
110/85962 282 M24x3 Inox 304 176 127 19 blanc 3000 0.8 kg
110/85961 283 M24x3 Inox 304 139 90 19 blanc 3000 0.669 kg
110/85964 284 M24x3 Inox 304 250 201 19 blanc 3000 1.021 kg
110/88276 285 M24x3 Inox 304 250 201 19 bleu 3000 1.021 kg
110/88275 286 M24x3 Inox 304 211 162 19 bleu 3000 0.882 kg
110/88274 287 M24x3 Inox 304 176 127 19 bleu 3000 0.8 kg
110/88273 288 M24x3 Inox 304 139 90 19 bleu 3000 0.669 kg
110/83587 289 M24x3 Inox 304 176 127 19 black 3000 0.8 kg
110/83586 290 M24x3 Inox 304 139 90 19 black 3000 0.669 kg
110/83588 291 M24x3 Inox 304 211 162 19 black 3000 0.882 kg
110/83589 292 M24x3 Inox 304 250 201 19 black 3000 1.021 kg
110/85966 293 M30x3,5 Inox 304 234 185 24 blanc 3000 1.332 kg
110/85965 294 M30x3,5 Inox 304 174 125 24 blanc 3000 1.05 kg
110/88278 295 M30x3,5 Inox 304 234 185 24 bleu 3000 1.332 kg
110/88277 296 M30x3,5 Inox 304 174 125 24 bleu 3000 1.05 kg
110/83590 297 M30x3,5 Inox 304 174 125 24 black 3000 1.05 kg
110/83591 298 M30x3,5 Inox 304 234 185 24 black 3000 1.332 kg
