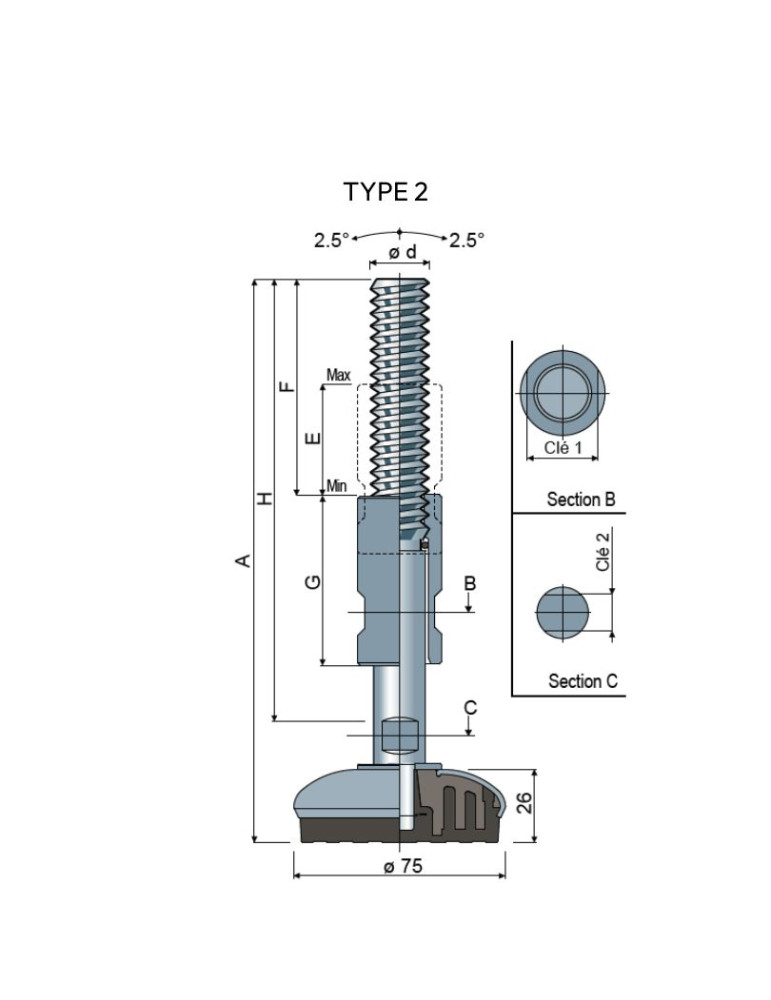

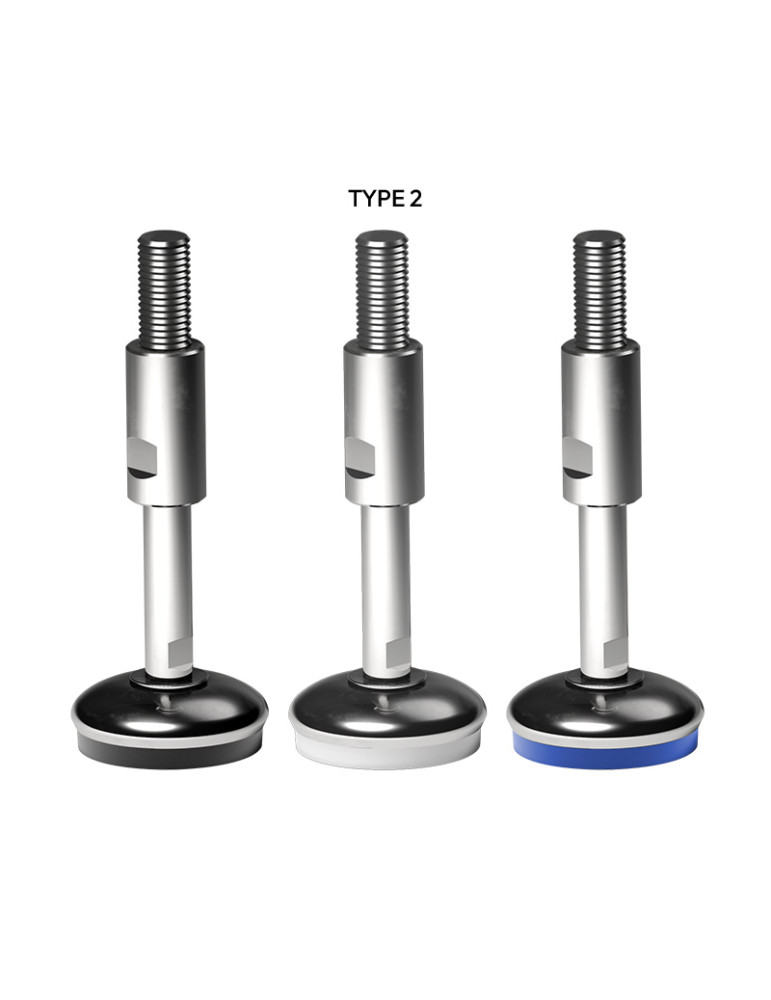

Stainless steel foot Ø 75 angle +/- 2.5°
Stainless steel foot Ø 75 angle +/- 2.5°

Stainless steel foot Ø 75 angle +/- 2.5°

Description

Adjustable footing feet for use in agri-food, medical, pharmaceutical industries ...

AISI 304 stainless steel stalk

Diameter 75 mm

Type 2 = +/- 2.5 ° angle

Feet for the support of conveyors and machines

Basic material: reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
108/88016

Specific References

  • PIED-108T2
Attachments

PIEDS 108

Download (799.68KB)
16 people are viewing this right now
DOM
108/88016
€88.16
Tax excluded
order: 19
ød: M16x2
A (mm): 200
H (mm): 159
Static load max/unit (kg): 2400
Colors: black
SOUT-F: 73
SOUT-E: 39
SOUT-G: 60
SOUT-Clé 1: 22
SOUT-Clé 2: 12
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order SOUT-Clé 1 SOUT-Clé 2 ød A (mm) H (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
108/88016 19 22 12 M16x2 200 159 black 2400 0.595 kg
108/88017 20 22 12 M16x2 260 220 black 2400 0.821 kg
108/84134 21 25 13 M20x2,5 200 159 black 2400 0.662 kg
108/84190 22 25 13 M20x2,5 260 220 black 2400 0.912 kg
108/88020 23 30 17 M24x3 200 159 black 2400 0.728 kg
108/88021 24 30 17 M24x3 260 220 black 2400 1.003 kg
108/88018 25 22 12 M16x2 200 159 blanc 2400 0.595 kg
108/88019 26 22 12 M16x2 260 220 blanc 2400 0.821 kg
108/85912 27 25 13 M20x2,5 200 159 blanc 2400 0.662 kg
108/85913 28 25 13 M20x2,5 260 220 blanc 2400 0.912 kg
108/88022 29 30 17 M24x3 200 159 blanc 2400 0.728 kg
108/88023 30 30 17 M24x3 260 220 blanc 2400 1.003 kg
108/88185 31 22 12 M16x2 200 159 bleu 2400 0.595 kg
108/88186 32 22 12 M16x2 260 220 bleu 2400 0.821 kg
108/88187 33 25 13 M20x2,5 200 159 bleu 2400 0.662 kg
108/88188 34 25 13 M20x2,5 260 220 bleu 2400 0.912 kg
108/88189 35 30 17 M24x3 200 159 bleu 2400 0.728 kg
108/88190 36 30 17 M24x3 260 220 bleu 2400 1.003 kg
