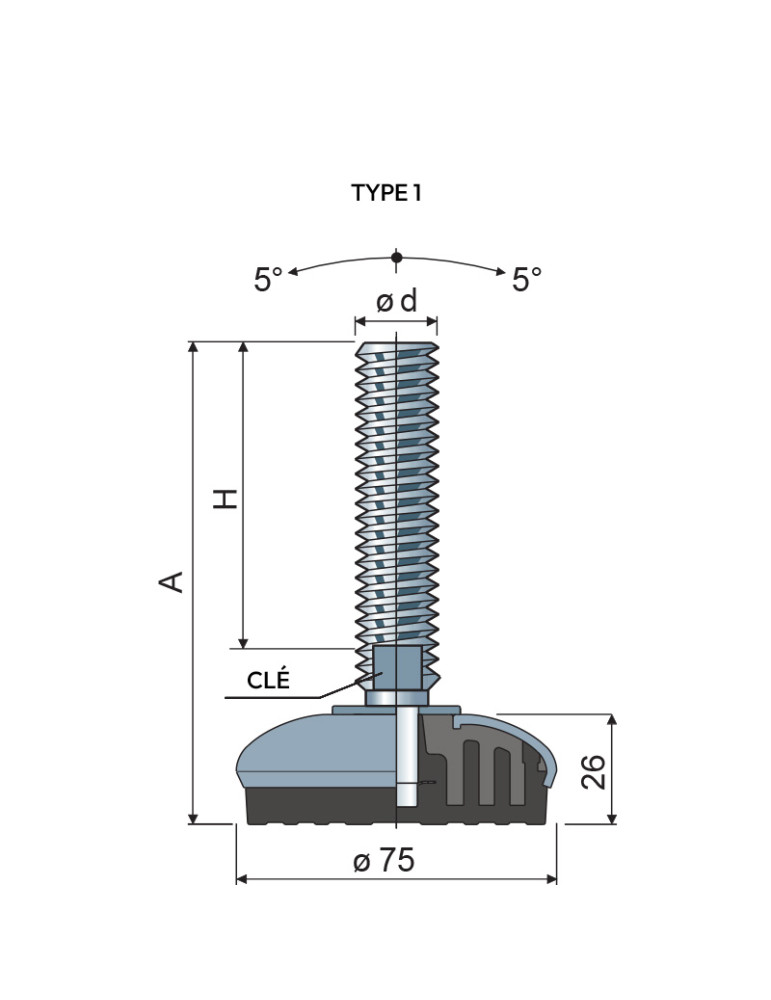

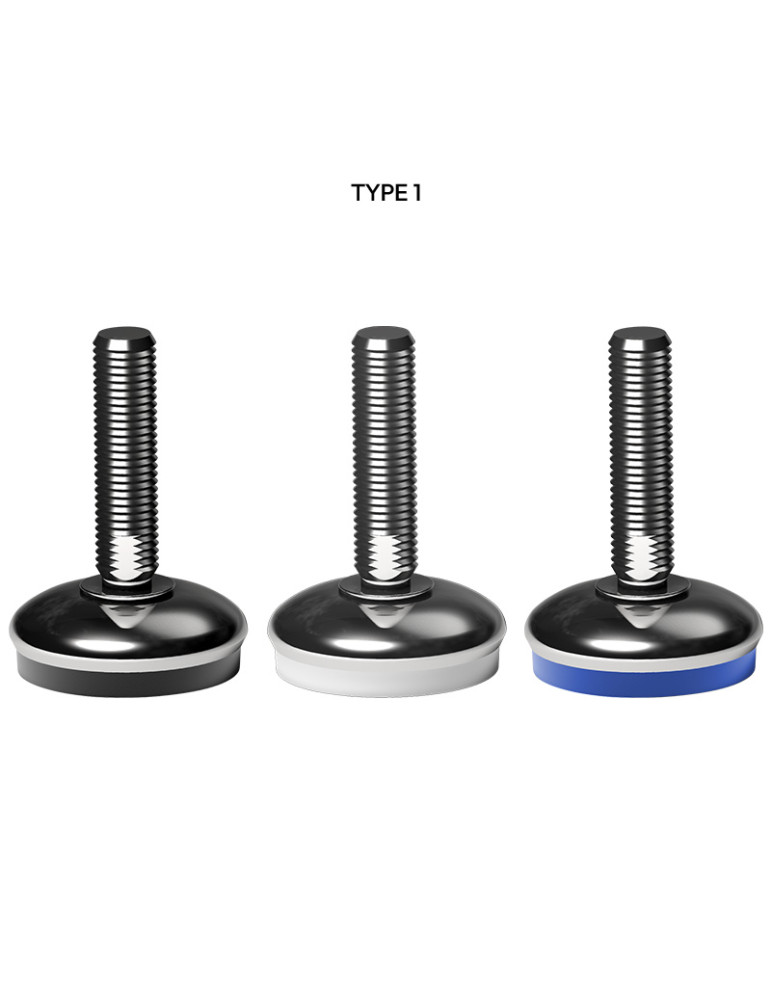

Stainless steel foot Ø 75 angle +/- 5°
Stainless steel foot Ø 75 angle +/- 5°

Stainless steel foot Ø 75 angle +/- 5°

Description

Steam feet stable stainless steel 304

Diameter 75 mm

Type 1 = angle of +/- 5 °

Feet for the support of conveyors and machines

Basic material: reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
108/83540

Specific References

  • PIED-108
Attachments

PIEDS 108

Download (799.68KB)
23 people are viewing this right now
DOM
108/83540
€37.88
Tax excluded
order: 161
ød: M12x1,75
A (mm): 109
H (mm): 70
Static load max/unit (kg): 1700
Material: Inox 304
Key (mm): 17
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
108/83540 161 M12x1,75 Inox 304 109 70 17 black 1700 0.205 kg
108/85894 162 M12x1,75 Inox 304 109 70 17 blanc 1700 0.205 kg
108/88166 163 M12x1,75 Inox 304 109 70 17 bleu 1700 0.205 kg
108/83541 164 M14x2 Inox 304 148 108 12 black 2400 0.249 kg
108/85895 165 M14x2 Inox 304 148 108 12 blanc 2400 0.249 kg
108/88167 166 M14x2 Inox 304 148 108 12 bleu 2400 0.249 kg
108/83542 167 M16x2 Inox 304 102 58 13 black 2400 0.245 kg
108/83543 168 M16x2 Inox 304 163 119 13 black 2400 0.323 kg
108/89329 169 M16x2 Inox 304 133 89 13 blanc 2400 0.284 kg
108/85898 170 M16x2 Inox 304 189 145 13 blanc 2400 0.327 kg
108/85896 171 M16x2 Inox 304 102 58 13 blanc 2400 0.245 kg
108/85899 172 M16x2 Inox 304 245 201 13 blanc 2400 0.43 kg
108/85897 173 M16x2 Inox 304 163 119 13 blanc 2400 0.323 kg
108/89330 174 M16x2 Inox 304 133 89 13 bleu 2400 0.284 kg
108/88170 175 M16x2 Inox 304 189 145 13 bleu 2400 0.327 kg
108/88168 176 M16x2 Inox 304 102 58 13 bleu 2400 0.245 kg
108/88171 177 M16x2 Inox 304 245 201 13 bleu 2400 0.43 kg
108/88169 178 M16x2 Inox 304 163 119 13 bleu 2400 0.323 kg
108/89328 179 M16x2 Inox 304 133 89 13 black 2400 0.284 kg
108/83544 180 M16x2 Inox 304 189 145 13 black 2400 0.327 kg
108/83545 181 M16x2 Inox 304 245 201 13 black 2400 0.43 kg
108/83546 182 M18x2,5 Inox 304 201 157 15 black 2400 0.429 kg
108/85900 183 M18x2,5 Inox 304 201 157 15 blanc 2400 0.429 kg
108/88172 184 M18x2,5 Inox 304 201 157 15 bleu 2400 0.429 kg
108/83547 185 M20x2,5 Inox 304 153 107 17 black 2400 0.43 kg
108/83548 186 M20x2,5 Inox 304 182 136 17 black 2400 0.464 kg
108/83549 187 M20x2,5 Inox 304 203 157 17 black 2400 0.505 kg
108/83550 188 M20x2,5 Inox 304 236 190 17 black 2400 0.587 kg
108/83551 189 M20x2,5 Inox 304 284 238 17 black 2400 0.706 kg
108/85904 190 M20x2,5 Inox 304 236 190 17 blanc 2400 0.587 kg
108/85901 191 M20x2,5 Inox 304 153 107 17 blanc 2400 0.43 kg
108/85902 192 M20x2,5 Inox 304 182 136 17 blanc 2400 0.464 kg
108/85903 193 M20x2,5 Inox 304 203 157 17 blanc 2400 0.505 kg
108/87336 194 M20x2,5 Inox 304 135 89 17 blanc 2400 0.397 kg
108/85905 195 M20x2,5 Inox 304 284 238 17 blanc 2400 0.706 kg
108/88178 196 M20x2,5 Inox 304 284 238 17 bleu 2400 0.706 kg
108/88176 197 M20x2,5 Inox 304 203 157 17 bleu 2400 0.505 kg
108/88174 198 M20x2,5 Inox 304 153 107 17 bleu 2400 0.43 kg
108/88173 199 M20x2,5 Inox 304 135 89 17 bleu 2400 0.397 kg
108/88177 200 M20x2,5 Inox 304 236 190 17 bleu 2400 0.587 kg
108/88175 201 M20x2,5 Inox 304 182 136 17 bleu 2400 0.464 kg
108/87335 202 M20x2,5 Inox 304 135 89 17 black 2400 0.397 kg
108/83552 203 M24x3 Inox 304 139 90 19 black 2400 0.471 kg
108/83553 204 M24x3 Inox 304 176 127 19 black 2400 0.602 kg
108/83554 205 M24x3 Inox 304 211 162 19 black 2400 0.684 kg
108/83555 206 M24x3 Inox 304 250 201 19 black 2400 0.81 kg
108/85906 207 M24x3 Inox 304 139 90 19 blanc 2400 0.471 kg
108/85909 208 M24x3 Inox 304 250 201 19 blanc 2400 0.81 kg
108/85907 209 M24x3 Inox 304 176 127 19 blanc 2400 0.602 kg
108/85908 210 M24x3 Inox 304 211 162 19 blanc 2400 0.684 kg
108/88181 211 M24x3 Inox 304 211 162 19 bleu 2400 0.684 kg
108/88182 212 M24x3 Inox 304 250 201 19 bleu 2400 0.81 kg
108/88180 213 M24x3 Inox 304 176 127 19 bleu 2400 0.602 kg
108/88179 214 M24x3 Inox 304 139 90 19 bleu 2400 0.471 kg
108/83556 215 M30x3,5 Inox 304 174 125 24 black 2400 0.852 kg
108/83557 216 M30x3,5 Inox 304 234 185 24 black 2400 1.134 kg
108/85910 217 M30x3,5 Inox 304 174 125 24 blanc 2400 0.852 kg
108/85911 218 M30x3,5 Inox 304 234 185 24 blanc 2400 1.134 kg
108/88184 219 M30x3,5 Inox 304 234 185 24 bleu 2400 1.134 kg
108/88183 220 M30x3,5 Inox 304 174 125 24 bleu 2400 0.852 kg
