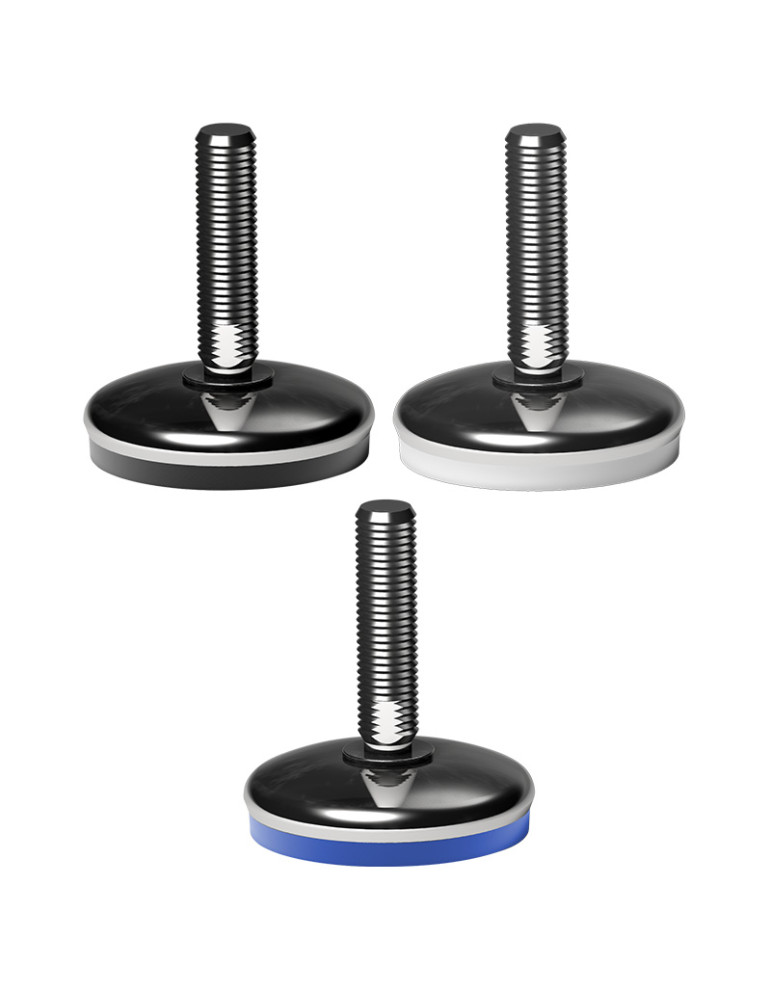

Stainless steel Adjustable foot Ø 95 angle +/- 5°
Stainless steel Adjustable foot Ø 95 angle +/- 5°

Stainless steel Adjustable foot Ø 95 angle +/- 5°

Description

Feet Stealy in stainless steel 304 fully disinfectable For use in agri-food, medical, pharmaceutical industries ...

Diameter 95 mm

Type 1 = angle of +/- 5 °

Basic material: reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
103/83043
23 Items

Specific References

  • PIED-103
Attachments

PIEDS 103

Download (704.45KB)
25 people are viewing this right now
DOM
103/83043
23 Items
€41.83
Tax excluded
order: 67
ød: M12x1,75
A (mm): 102
H (mm): 58
Static load max/unit (kg): 1700
Material: Inox 304
Key (mm): 13
Colors: black
Quantity
Add to Wishlist
Add to Compare

Hurry up! Only 23 item(s) left in Stock!
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

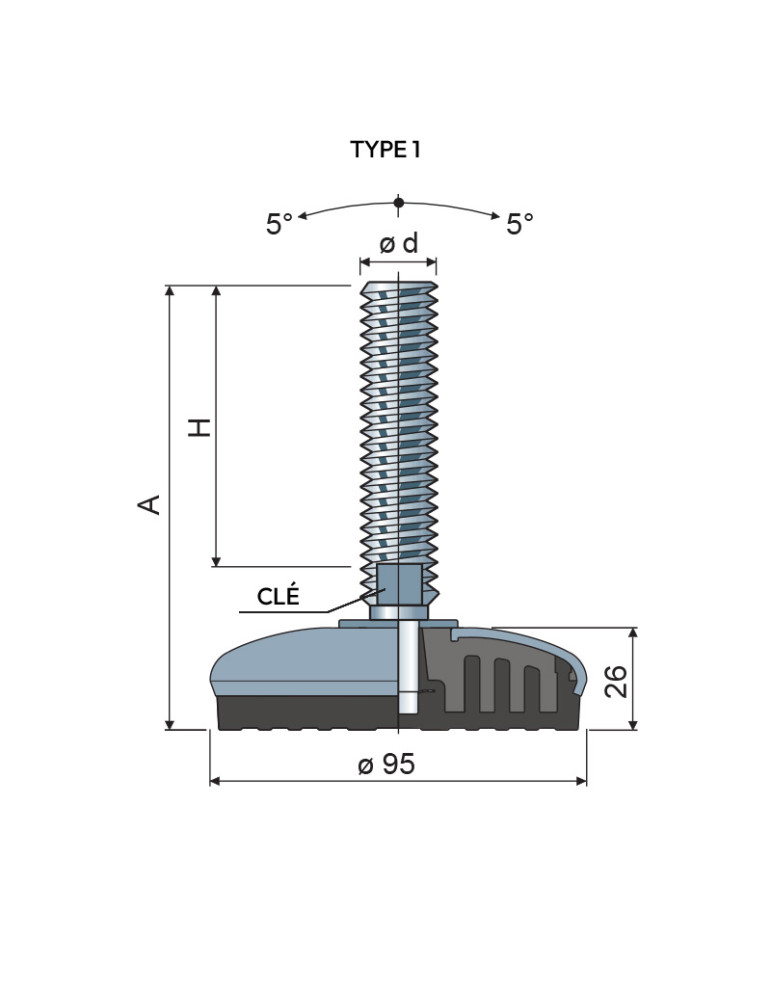

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
103/85854 65 M12x1,75 Inox 304 109 70 17 blanc 1700 0.259 kg
103/88191 66 M12x1,75 Inox 304 109 70 17 bleu 1700 0.259 kg
103/83043 67 M12x1,75 Inox 304 102 58 13 black 1700 0.259 kg
103/83637 68 M14x2 Inox 304 148 108 12 blanc 2700 0.322 kg
103/88192 69 M14x2 Inox 304 148 108 12 bleu 2700 0.322 kg
103/83052 70 M14x2 Inox 304 133 89 13 black 2700 0.322 kg
103/85856 71 M16x2 Inox 304 102 58 13 blanc 2700 0.318 kg
103/83651 72 M16x2 Inox 304 163 119 13 blanc 2700 0.396 kg
103/89332 73 M16x2 Inox 304 133 89 13 blanc 2700 0.357 kg
103/85858 74 M16x2 Inox 304 189 145 13 blanc 2700 0.507 kg
103/85859 75 M16x2 Inox 304 245 201 13 blanc 2700 0.503 kg
103/89333 76 M16x2 Inox 304 133 89 13 bleu 2700 0.357 kg
103/88194 77 M16x2 Inox 304 163 119 13 bleu 2700 0.396 kg
103/88193 78 M16x2 Inox 304 102 58 13 bleu 2700 0.318 kg
103/88196 79 M16x2 Inox 304 245 201 13 bleu 2700 0.503 kg
103/88195 80 M16x2 Inox 304 189 145 13 bleu 2700 0.507 kg
103/83053 81 M16x2 Inox 304 163 119 13 black 2700 0.318 kg
103/83054 82 M16x2 Inox 304 189 145 13 black 2700 0.396 kg
103/83055 83 M16x2 Inox 304 245 201 13 black 2700 0.452 kg
103/83056 84 M16x2 Inox 304 201 157 15 black 2700 0.503 kg
103/85860 85 M18x2,5 Inox 304 201 157 15 blanc 2700 0.502 kg
103/88197 86 M18x2,5 Inox 304 201 157 15 bleu 2700 0.502 kg
103/83057 87 M18x2,5 Inox 304 135 89 17 black 2700 0.502 kg
103/85863 88 M20x2,5 Inox 304 236 190 17 blanc 2700 0.672 kg
103/85862 89 M20x2,5 Inox 304 203 157 17 blanc 2700 0.578 kg
103/85861 90 M20x2,5 Inox 304 153 107 17 blanc 2700 0.503 kg
103/83627 91 M20x2,5 Inox 304 182 136 17 blanc 2700 0.537 kg
103/87340 92 M20x2,5 Inox 304 135 89 17 blanc 2700 0.47 kg
103/85864 93 M20x2,5 Inox 304 284 238 17 blanc 2700 0.808 kg
103/88202 94 M20x2,5 Inox 304 236 190 17 bleu 2700 0.672 kg
103/88198 95 M20x2,5 Inox 304 135 89 17 bleu 2700 0.47 kg
103/88203 96 M20x2,5 Inox 304 284 238 17 bleu 2700 0.808 kg
103/88201 97 M20x2,5 Inox 304 203 157 17 bleu 2700 0.578 kg
103/88200 98 M20x2,5 Inox 304 182 136 17 bleu 2700 0.537 kg
103/88199 99 M20x2,5 Inox 304 153 107 17 bleu 2700 0.503 kg
103/83058 100 M20x2,5 Inox 304 153 107 17 black 2700 0.503 kg
103/83059 101 M20x2,5 Inox 304 182 136 17 black 2700 0.537 kg
103/83060 102 M20x2,5 Inox 304 203 157 17 black 2700 0.578 kg
103/83061 103 M20x2,5 Inox 304 236 190 17 black 2700 0.672 kg
103/83062 104 M20x2,5 Inox 304 284 238 17 black 2700 0.808 kg
103/85867 105 M24x3 Inox 304 211 162 19 blanc 2700 0.757 kg
103/85866 106 M24x3 Inox 304 176 127 19 blanc 2700 0.675 kg
103/85865 107 M24x3 Inox 304 139 90 19 blanc 2700 0.544 kg
103/85868 108 M24x3 Inox 304 250 201 19 blanc 2700 0.896 kg
103/88204 109 M24x3 Inox 304 139 90 19 bleu 2700 0.544 kg
103/88206 110 M24x3 Inox 304 211 162 19 bleu 2700 0.757 kg
103/88207 111 M24x3 Inox 304 250 201 19 bleu 2700 0.896 kg
103/88205 112 M24x3 Inox 304 176 127 19 bleu 2700 0.675 kg
103/83063 113 M24x3 Inox 304 139 90 19 black 2700 0.544 kg
103/83064 114 M24x3 Inox 304 176 127 19 black 2700 0.675 kg
103/83065 115 M24x3 Inox 304 211 162 19 black 2700 0.757 kg
103/83066 116 M24x3 Inox 304 250 201 19 black 2700 0.896 kg
103/85870 117 M30x3,5 Inox 304 234 185 24 blanc 2700 1.207 kg
103/85869 118 M30x3,5 Inox 304 174 125 24 blanc 2700 0.925 kg
103/88208 119 M30x3,5 Inox 304 174 125 24 bleu 2700 0.925 kg
103/88209 120 M30x3,5 Inox 304 234 185 24 bleu 2700 1.27 kg
103/83067 121 M30x3,5 Inox 304 174 125 24 black 2700 0.925 kg
103/83068 122 M30x3,5 Inox 304 234 185 24 black 2700 1.207 kg
