Stainless steel foot 95x130 angle +/- 5°
Stainless steel foot 95x130 angle +/- 5°

Stainless steel foot 95x130 angle +/- 5°

Description

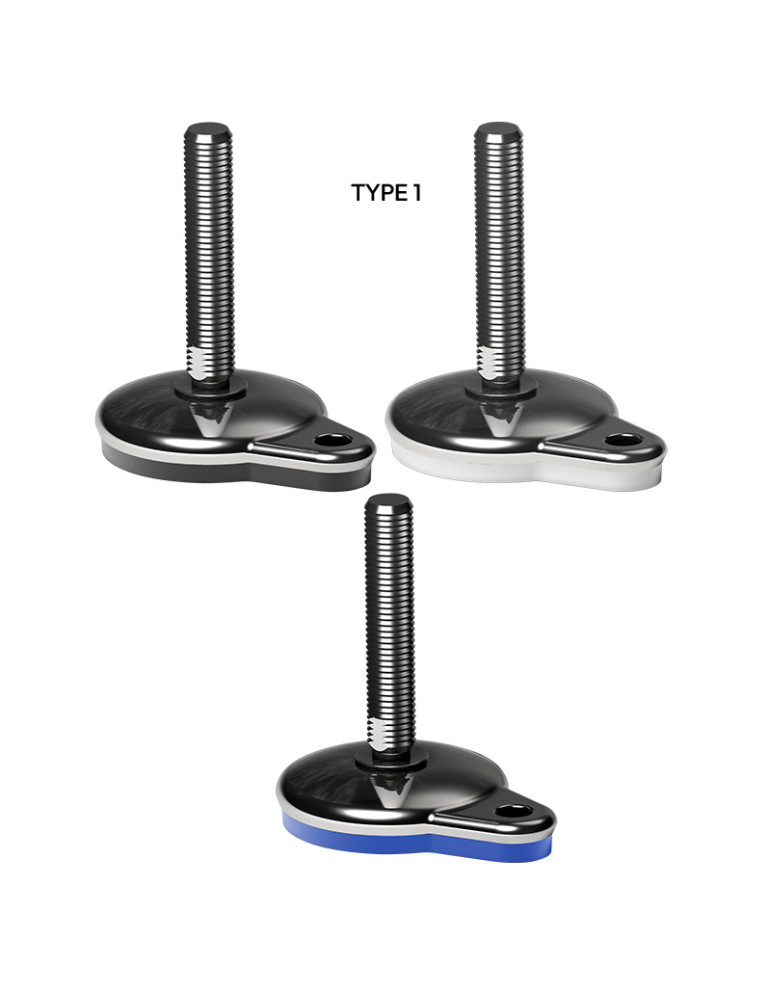

Feet Rable disinfectable stainless steel 304, available in black, white and blue.

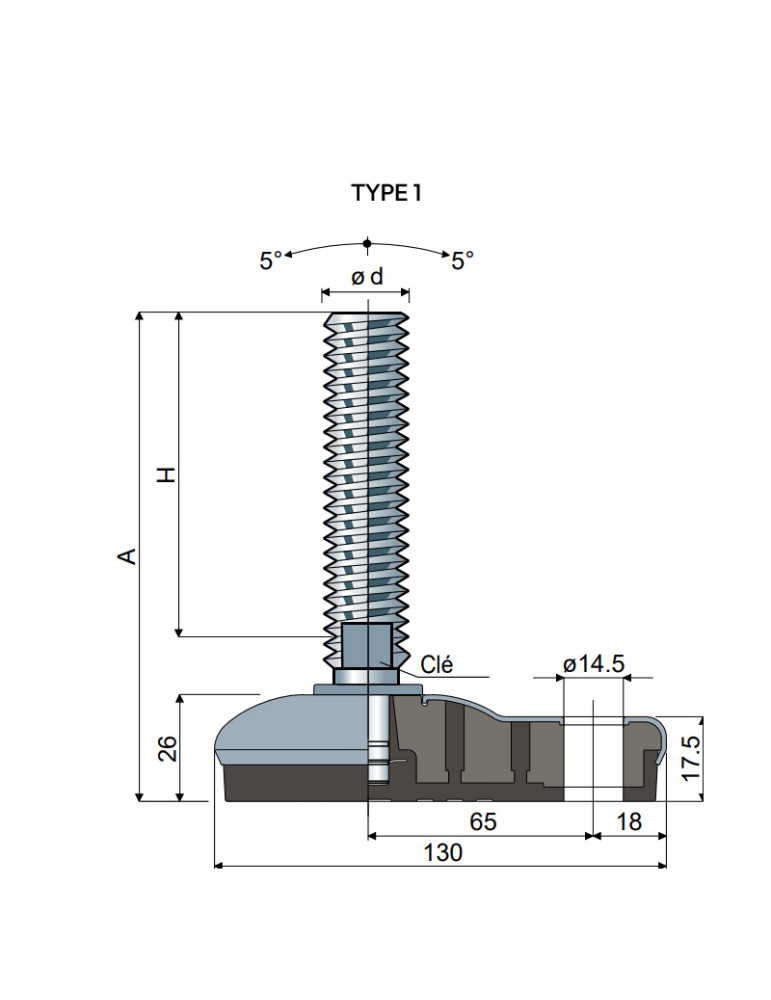

Dimensions: 95x130 mm

Type 1 = angle of +/- 5 °

Feet for the support of conveyors and machines

Basic material: Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti slippery PVC 68 shore black, white or blue color 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
112/83744

Specific References

  • PIED-112
Attachments

PIEDS 112

Download (660.48KB)
24 people are viewing this right now
DOM
112/83744
€47.06
Tax excluded
order: 319
ød: M12x1,75
A (mm): 111
H (mm): 70
Static load max/unit (kg): 1700
Material: Inox 304
Key (mm): 17
Colors: black
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) Key (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
112/85928 317 M12x1,75 Inox 304 111 70 17 blanc 1700 0.326 kg
112/88235 318 M12x1,75 Inox 304 111 70 17 bleu 1700 0.326 kg
112/83744 319 M12x1,75 Inox 304 111 70 17 black 1700 0.326 kg
112/83745 320 M14x2 Inox 304 150 108 12 black 2700 0.389 kg
112/85929 321 M14x2 Inox 305 150 108 12 blanc 2700 0.389 kg
112/88236 322 M14x2 Inox 305 150 108 12 bleu 2700 0.389 kg
112/83746 323 M16x2 Inox 304 103 58 13 black 2700 0.385 kg
112/83747 324 M16x2 Inox 304 164 119 13 black 2700 0.463 kg
112/83749 325 M16x2 Inox 304 246 201 13 black 2700 0.57 kg
112/83748 326 M16x2 Inox 304 190 145 13 black 2700 0.467 kg
112/89337 327 M16x2 Inox 304 134 89 13 black 2700 0.424 kg
112/85930 328 M16x2 Inox 306 103 58 13 blanc 2700 0.385 kg
112/88237 329 M16x2 Inox 306 103 58 13 bleu 2700 0.385 kg
112/89338 330 M16x2 Inox 307 134 89 13 blanc 2700 0.424 kg
112/89339 331 M16x2 Inox 307 134 89 13 bleu 2700 0.424 kg
112/85931 332 M16x2 Inox 308 164 119 13 blanc 2700 0.463 kg
112/88238 333 M16x2 Inox 308 164 119 13 bleu 2700 0.463 kg
112/85932 334 M16x2 Inox 309 190 145 13 blanc 2700 0.467 kg
112/88239 335 M16x2 Inox 309 190 145 13 bleu 2700 0.467 kg
112/85933 336 M16x2 Inox 310 246 201 13 blanc 2700 0.57 kg
112/88240 337 M16x2 Inox 310 246 201 13 bleu 2700 0.57 kg
112/85934 338 M18x2,5 Inox 311 203 157 15 blanc 2700 0.569 kg
112/88241 339 M18x2,5 Inox 311 203 157 15 bleu 2700 0.569 kg
112/83750 340 M18x2,5 Inox 304 203 157 15 black 2700 0.569 kg
112/83752 341 M20x2,5 Inox 304 183 136 17 black 2700 0.604 kg
112/83751 342 M20x2,5 Inox 304 154 107 17 black 2700 0.544 kg
112/87341 343 M20x2,5 Inox 304 136 89 17 black 2700 0.511 kg
112/87342 344 M20x2,5 Inox 312 136 89 17 blanc 2700 0.511 kg
112/88242 345 M20x2,5 Inox 312 136 89 17 bleu 2700 0.511 kg
112/85935 346 M20x2,5 Inox 313 154 107 17 blanc 2700 0.544 kg
112/88243 347 M20x2,5 Inox 313 154 107 17 bleu 2700 0.544 kg
112/84222 348 M20x2,5 Inox 314 183 136 17 blanc 2700 0.604 kg
112/88244 349 M20x2,5 Inox 314 183 136 17 bleu 2700 0.604 kg
112/85936 350 M20x2,5 Inox 315 204 157 17 blanc 2700 0.645 kg
112/88245 351 M20x2,5 Inox 315 204 157 17 bleu 2700 0.645 kg
112/85937 352 M20x2,5 Inox 316 237 190 17 blanc 2700 0.749 kg
112/88246 353 M20x2,5 Inox 316 237 190 17 bleu 2700 0.749 kg
112/85938 354 M20x2,5 Inox 317 285 238 17 blanc 2700 0.901 kg
112/88247 355 M20x2,5 Inox 317 285 238 17 bleu 2700 0.901 kg
112/83753 356 M20x2,5 Inox 304 204 157 17 black 2700 0.645 kg
112/83754 357 M20x2,5 Inox 304 237 190 17 black 2700 0.749 kg
112/83755 358 M20x2,5 Inox 304 285 238 17 black 2700 0.901 kg
112/83756 359 M24x3 Inox 304 141 90 19 black 2700 0.611 kg
112/83757 360 M24x3 Inox 304 178 127 19 black 2700 0.742 kg
112/83758 361 M24x3 Inox 304 213 162 19 black 2700 0.824 kg
112/83759 362 M24x3 Inox 304 252 201 19 black 2700 0.976 kg
112/85939 363 M24x3 Inox 318 141 90 19 blanc 2700 0.611 kg
112/88248 364 M24x3 Inox 318 141 90 19 bleu 2700 0.611 kg
112/85940 365 M24x3 Inox 319 178 127 19 blanc 2700 0.742 kg
112/88249 366 M24x3 Inox 319 178 127 19 bleu 2700 0.742 kg
112/85941 367 M24x3 Inox 320 213 162 19 blanc 2700 0.824 kg
112/88250 368 M24x3 Inox 320 213 162 19 bleu 2700 0.824 kg
112/85942 369 M24x3 Inox 321 252 201 19 blanc 2700 0.976 kg
112/88251 370 M24x3 Inox 321 252 201 19 bleu 2700 0.976 kg
112/83760 371 M30x3,5 Inox 304 176 125 24 black 2700 0.992 kg
112/83761 372 M30x3,5 Inox 304 236 185 24 black 2700 1.274 kg
112/85943 373 M30x3,5 Inox 322 176 125 24 blanc 2700 0.992 kg
112/88252 374 M30x3,5 Inox 322 176 125 24 bleu 2700 0.992 kg
112/84223 375 M30x3,5 Inox 323 236 185 24 blanc 2700 1.274 kg
112/88253 376 M30x3,5 Inox 323 236 185 24 bleu 2700 1.274 kg
Total: 0,0
All prices with tax excluded.
Tax rate: 20,0%.
