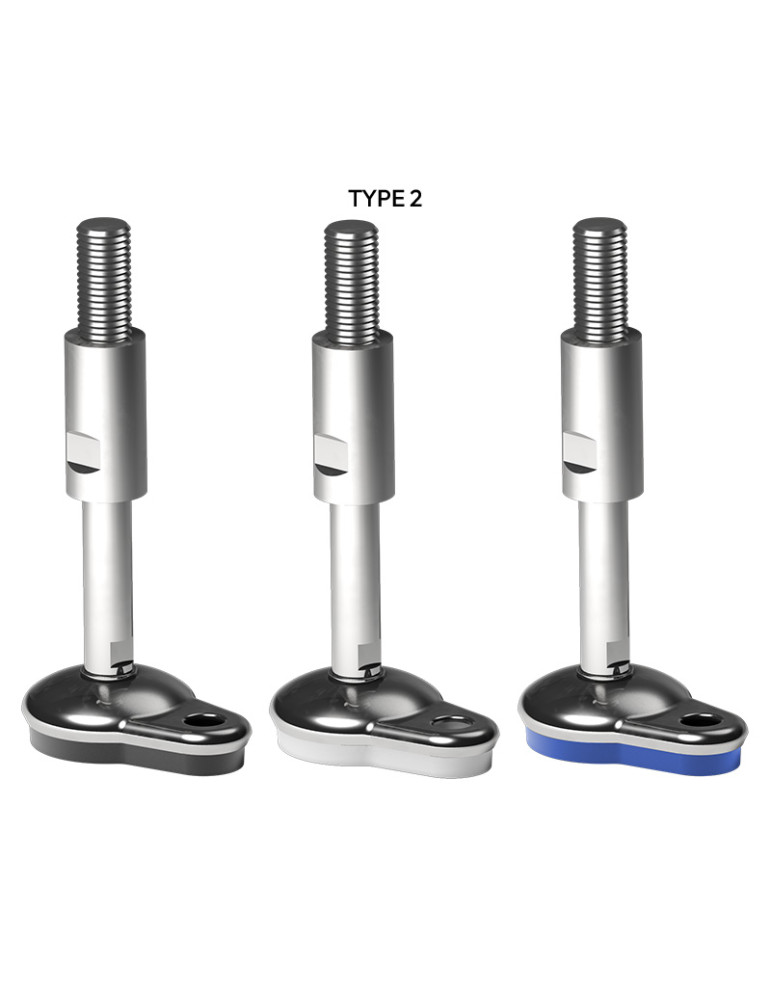

Stainless steel foot 65x96mm angle +/- 2.5°
Stainless steel foot 65x96mm angle +/- 2.5°

Stainless steel foot 65x96mm angle +/- 2.5°

Description

Adjustable disinfectable feet with lateral fixing

AISI 304 stainless steel stalk

Type 2 = +/- 2.5 ° angle

Dimensions: 65x96 mm

Materials

Reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005. Packaging: 8 pieces.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection. M12 stem feet are supplied with a hex adjustment for a 17 mm key

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers

Feet of machines and components made in Italy.

Product Details
119/88032

Specific References

  • PIED-119T2
Attachments

PIEDS 119

Download (803.88KB)
15 people are viewing this right now
DOM
119/88032
€94.57
Tax excluded
order: 1
ød: M16x2
A (mm): 200
H (mm): 159
Static load max/unit (kg): 2200
Colors: black
SOUT-F: 73
SOUT-E: 39
SOUT-G: 60
SOUT-Clé 1: 22
SOUT-Clé 2: 12
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

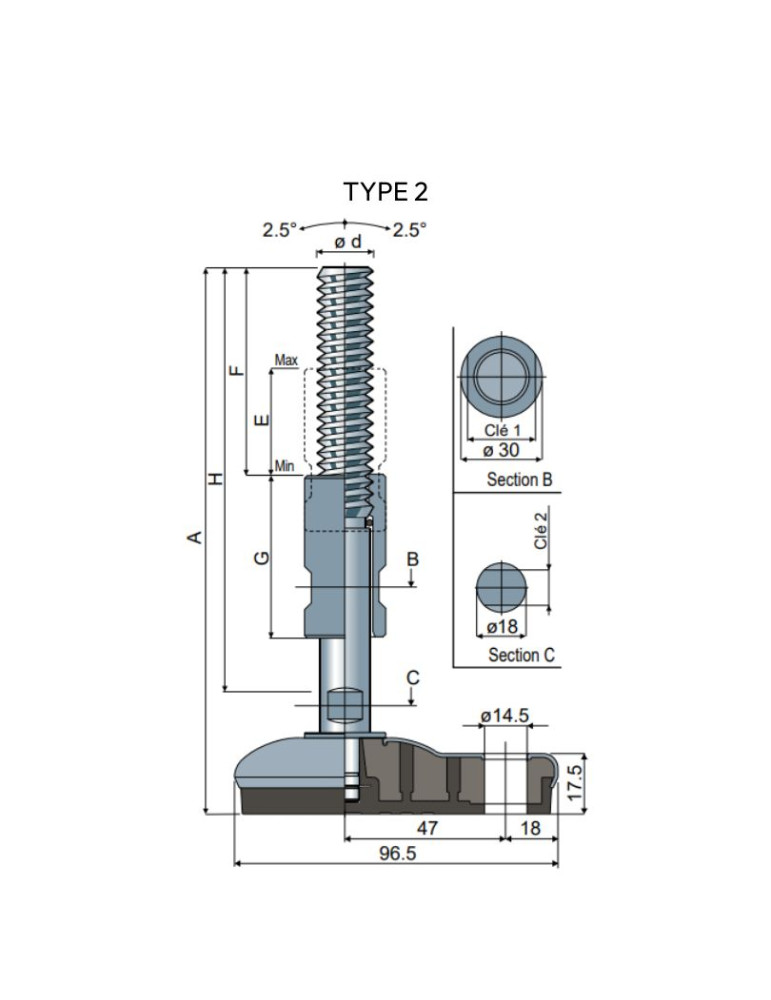

Ref. order SOUT-Clé 1 SOUT-Clé 2 ød A (mm) H (mm) Colors Static load max/unit (kg) Unit price Weight Avail. Buy
119/88032 1 22 12 M16x2 200 159 black 2200 0.596 kg
119/88033 2 22 12 M16x2 260 220 black 2200 0.824 kg
119/85088 3 25 13 M20x2,5 200 159 black 2200 0.663 kg
119/85089 4 25 13 M20x2,5 260 220 black 2200 0.916 kg
119/88036 5 30 17 M24x3 200 159 black 2200 0.729 kg
119/88037 6 30 17 M24x3 260 220 black 2200 1.007 kg
119/88034 7 22 12 M16x2 200 159 blanc 2200 0.596 kg
119/88035 8 22 12 M16x2 260 220 blanc 2200 0.824 kg
119/85926 9 25 13 M20x2,5 200 159 blanc 2200 0.663 kg
119/85927 10 25 13 M20x2,5 260 220 blanc 2200 0.916 kg
119/88038 11 30 17 M24x3 200 159 blanc 2200 0.729 kg
119/88039 12 30 17 M24x3 260 220 blanc 2200 1.007 kg
119/88229 13 22 12 M16x2 200 159 bleu 2200 0.596 kg
119/88230 14 22 12 M16x2 260 220 bleu 2200 0.824 kg
119/88231 15 25 13 M20x2,5 200 159 bleu 2200 0.663 kg
119/88232 16 25 13 M20x2,5 260 220 bleu 2200 0.916 kg
119/88233 17 30 17 M24x3 200 159 bleu 2200 0.729 kg
119/88234 18 30 17 M24x3 260 220 bleu 2200 0.007 kg
