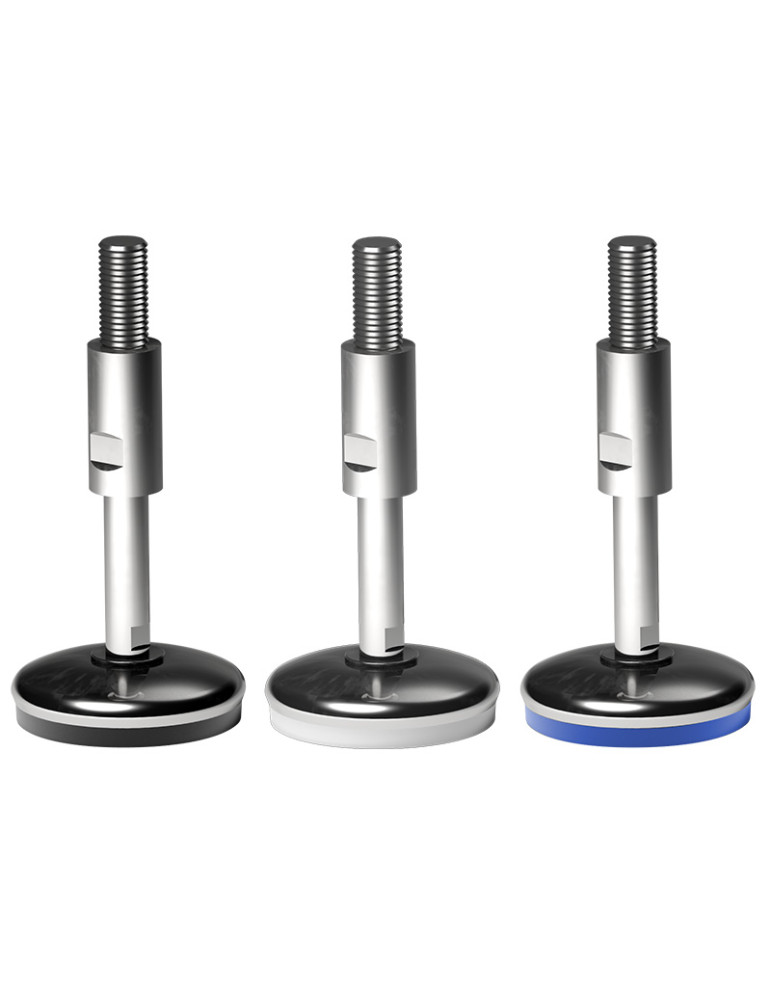

Stainless steel Adjustable foot 103 diam.95 - Type 2
Stainless steel Adjustable foot 103 diam.95 - Type 2

Stainless steel Adjustable foot 103 diam.95 - Type 2

Description

Fully disinfectable steerable steerable feet For use in agri-food, medical, pharmaceutical industries ...

Diameter 95 mm

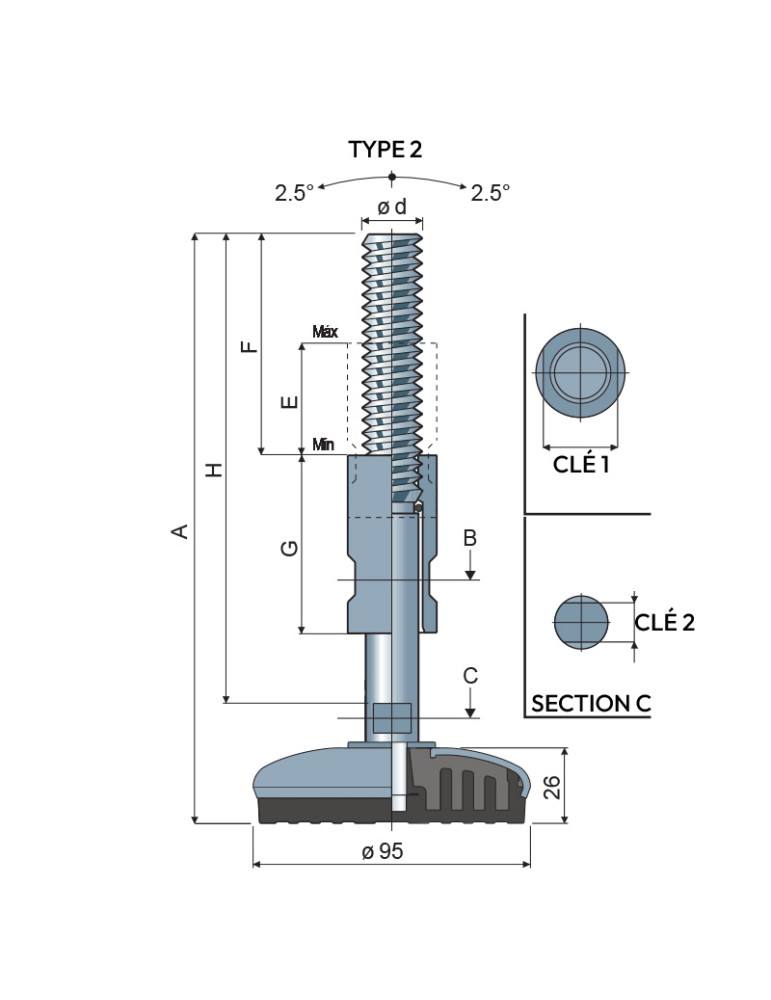

Type 2 = +/- 2.5 ° angle

Basic material: reinforced polyamide interior; external coating in AISI 304 stainless steel; Anti-slip in flexible PVC 68 shore color black, white or blue RAL 5005.

Features

The molded anti-slip jointly at the base ensures perfect adhesion to the steel base. The absence of internal cavities thus obtained is pledge of high degree of disinfection of the foot. The adjusting threaded insert guarantees the thread protection.

The M12 stem feet are supplied with a hexagonal setting for a 17 mm key.

On demand

• Rods with: Six troughs in the head of the rod • Additional housing Key in the head • Hexagin key housing • Threads with no different lengths • AISI 316 stainless steel.

• Assembly of: nuts • washers.

Feet of machines and components made in Italy.

Product Details
103/88213

Specific References

  • PIED-103T2
Attachments

PIEDS 103

Download (704.45KB)
16 people are viewing this right now
DOM
103/88213
€146.05
Tax excluded
order: 132
ød: M20x2,5
A (mm): 260
H (mm): 220
Static load max/unit (kg): 2700
Material: Inox 304
Colors: bleu
SOUT-F: 100
SOUT-E: 78
SOUT-G: 100
SOUT-Clé1: 25
SOUT-Clé2: 13
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
SUPPORTING AND LEVELLING COMPONENTS,  Adjustable feet

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order ød Material A (mm) H (mm) SOUT-Clé1 SOUT-Clé2 Colors Static load max/unit (kg) Unit price Weight Avail. Buy
103/88027 123 M16x2 Inox 304 260 220 22 12 blanc 2700 0.891 kg
103/88026 124 M16x2 Inox 304 200 159 22 12 blanc 2700 0.661 kg
103/88210 125 M16x2 Inox 304 200 159 22 12 bleu 2700 0.661 kg
103/88211 126 M16x2 Inox 304 260 220 22 12 bleu 2700 0.891 kg
103/88025 127 M16x2 Inox 304 260 220 22 12 black 2700 0.891 kg
103/88024 128 M16x2 Inox 304 200 159 22 12 black 2700 0.661 kg
103/85873 129 M20x2,5 Inox 304 260 220 25 13 blanc 2700 0.99 kg
103/85872 130 M20x2,5 Inox 304 200 159 25 13 blanc 2700 0.735 kg
103/88212 131 M20x2,5 Inox 304 200 159 25 13 bleu 2700 0.735 kg
103/88213 132 M20x2,5 Inox 304 260 220 25 13 bleu 2700 0.99 kg
103/84191 133 M20x2,5 Inox 304 260 220 25 13 black 2700 0.99 kg
103/83465 134 M20x2,5 Inox 304 200 159 25 13 black 2700 0.735 kg
103/88031 135 M24x3 Inox 304 260 220 30 17 blanc 2700 1.089 kg
103/88030 136 M24x3 Inox 304 200 159 30 17 blanc 2700 0.808 kg
103/88214 137 M24x3 Inox 304 200 159 30 17 bleu 2700 0.808 kg
103/88215 138 M24x3 Inox 304 260 220 30 17 bleu 2700 1.089 kg
103/88028 139 M24x3 Inox 304 200 159 30 17 black 2700 0.808 kg
103/88029 140 M24x3 Inox 304 260 220 30 17 black 2700 1.089 kg
