XXH500 timing pulley
  • New
XXH500 timing pulley

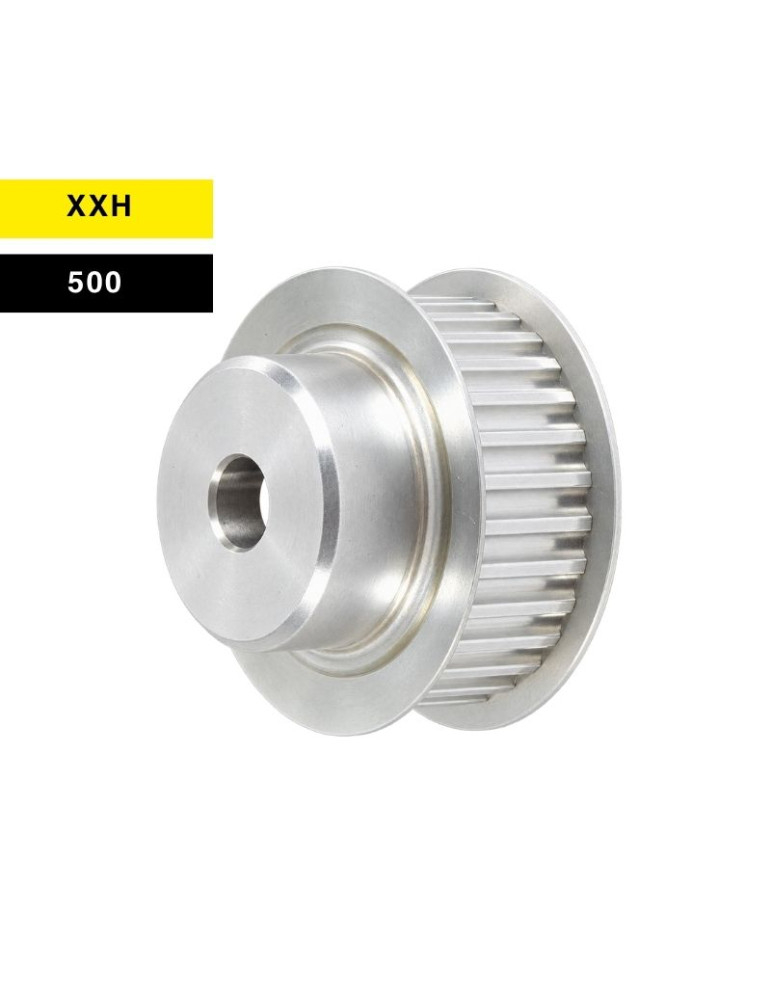

XXH500 timing pulley

Description

The XXH500 timing pulley is designed for a XXH-profile synchronous belt with 5 in nominal width and 31.75 mm pitch.

Comes in 18 to 26 tooth versions.

Select the tooth count for the required drive ratio, then confirm diameter, finished bore and available shaft space.

Product Details
18XXH500F

Specific References

  • 8054652097910
  • poulie-dentee-18xxh500
15 people are viewing this right now
DOM
18XXH500F
€256.93
Tax excluded
order: 599
Material: acier
CHI-Pièce: Poulie
CHI-type1: 8XXH500
CHI-type3: -
Type: 18XXH500
Teeth: 18

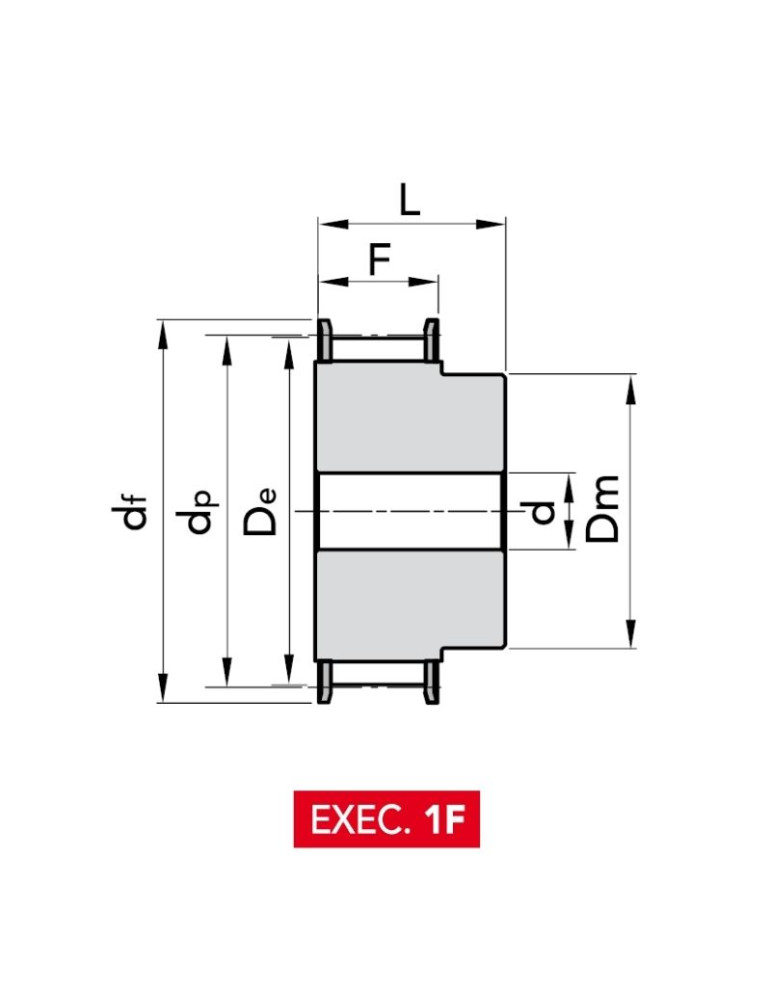

Execution: 1F
Dp: 181,91
De: 178,87
Df flange: 198
Dm: 140
CHI-Di: -
CHI-F: 145,3
CHI-L: 168
d: 32
N° flange: 163
CHI-Flasque: oui
Quantity
Add to Wishlist
Add to Compare

Sorry, no items left.
PULLEYS,  Timing pulleys with pilot bore,  XXH timing-pulley

Choose product attributes:

 Immediate stock
 Platform stock

*Prix HT hors frais d’envoi

Ref. order Teeth Type Execution Dp De Df flange Dm d Material N° flange Unit price Weight Avail. Buy
18XXH500F 599 18 18XXH500 1F 181,91 178,87 198 140 32 acier 163
€256.93
32 kg
20XXH500F 600 20 20XXH500 1F 202,13 199,08 212 150 32 acier 165
€302.05
37 kg
22XXH500F 601 22 22XXH500 1F 222,34 219,29 240 150 32 acier 169
€353.29
42 kg
24XXH500F 602 24 24XXH500 1F 242,55 239,5 267 150 32 acier 173
€402.47
47 kg
26XXH500F 603 26 26XXH500 1F 262,76 259,79 290 150 32 acier 178
€459.70
52 kg
