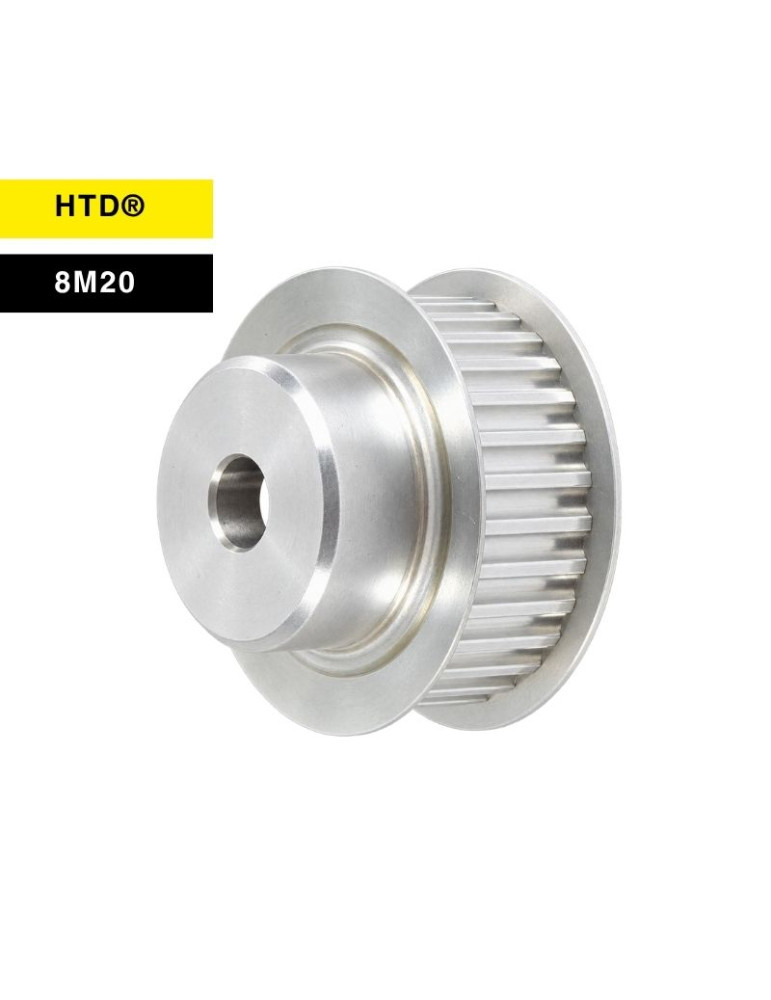

HTD® 8M20 pilot-bore pulley

Description

The HTD® 8M20 timing pulley matches a 8M-profile synchronous belt with a nominal width of 20 mm and a 8 mm pitch.

Comes in 22 to 192 tooth versions, some made to order.

Choose the tooth count and check the bore to be machined along with your mounting dimensions.

Reference 24-8M20F

In stock 2 Items

Specific References

25 people are viewing this right now

€7.78

Tax excluded

order: 99

Material: acier

CHI-Pièce: Poulie

CHI-Version poulie: HTD

CHI-type1: 8M-20F

CHI-type3: 8M

Type: 24-8M20F

Teeth: 24

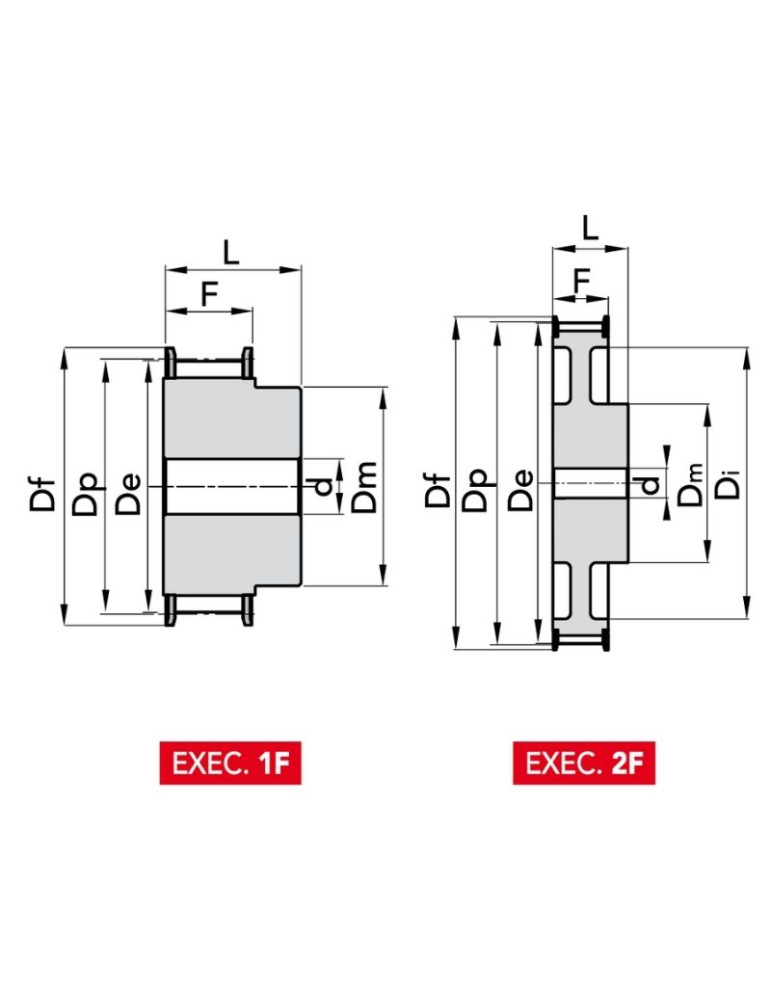

Execution: 1F

Dp: 61,12

De: 59,75

Df flange: 66

Dm: 45

CHI-Di: -

CHI-F: 28

CHI-L: 38

d: 12

N° flange: 69

CHI-Flasque: oui

Quantity

Last items in stock

Hurry up! Only 2 item(s) left in Stock!

Categories: PULLEYS, HTD® timing pulleys with pilot bore, HTD® 8M Pulleys

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
22-8M20F	98	22	22-8M20F	1F	56,02	54,65	60	43	12	acier	53	€6.91	0.533 kg	Sum.: Sum.:
24-8M20F	99	24	24-8M20F	1F	61,12	59,75	66	45	12	acier	69	€7.78	0.639 kg	Sum.: Sum.:
26-8M20F	100	26	26-8M20F	1F	66,21	64,85	70	48	12	acier	61	€8.72	0.756 kg	Sum.: Sum.:
28-8M20F	101	28	28-8M20F	1F	71,3	70,08	75	50	15	acier	79	€9.63	0.85 kg	Sum.: Sum.:
30-8M20F	102	30	30-8M20F	1F	76,39	75,13	82,5	55	15	acier	64	€10.88	1.01 kg	Sum.: Sum.:
32-8M20F	103	32	32-8M20F	1F	81,49	80,16	87	60	15	acier	76	€11.97	1.176 kg	Sum.: Sum.:
34-8M20F	104	34	34-8M20F	1F	86,58	85,22	91	66	15	acier	66	€13.28	1.35 kg	Sum.: Sum.:
36-8M20F	105	36	36-8M20F	1F	91,67	90,3	97	70	15	acier	68	€14.63	1.536 kg	Sum.: Sum.:
38-8M20F	106	38	38-8M20F	1F	96,77	95,39	102	75	15	acier	70	€16.01	1.737 kg	Sum.: Sum.:
40-8M20F	107	40	40-8M20F	1F	101,86	100,49	106	75	15	acier	77	€17.20	1.905 kg	Sum.: Sum.:
44-8M20F	108	44	44-8M20F	1F	112,05	110,67	120	75	15	acier	75	€20.63	2.264 kg	Sum.: Sum.:
48-8M20F	109	48	48-8M20F	1F	122,23	120,86	128	75	15	acier	78	€23.61	2.645 kg	Sum.: Sum.:
56-8M20F	110	56	56-8M20F	2F	142,6	141,23	150	80	15	acier	85	€31.69	2.852 kg	Sum.: Sum.:
64-8M20F	111	64	64-8M20F	2F	162,97	161,6	168	80	15	acier	90	€39.68	3.285 kg	Sum.: Sum.:
72-8M20F	112	72	72-8M20F	2F	183,35	181,97	192	80	15	acier	97	€47.96	3.815 kg	Sum.: Sum.:

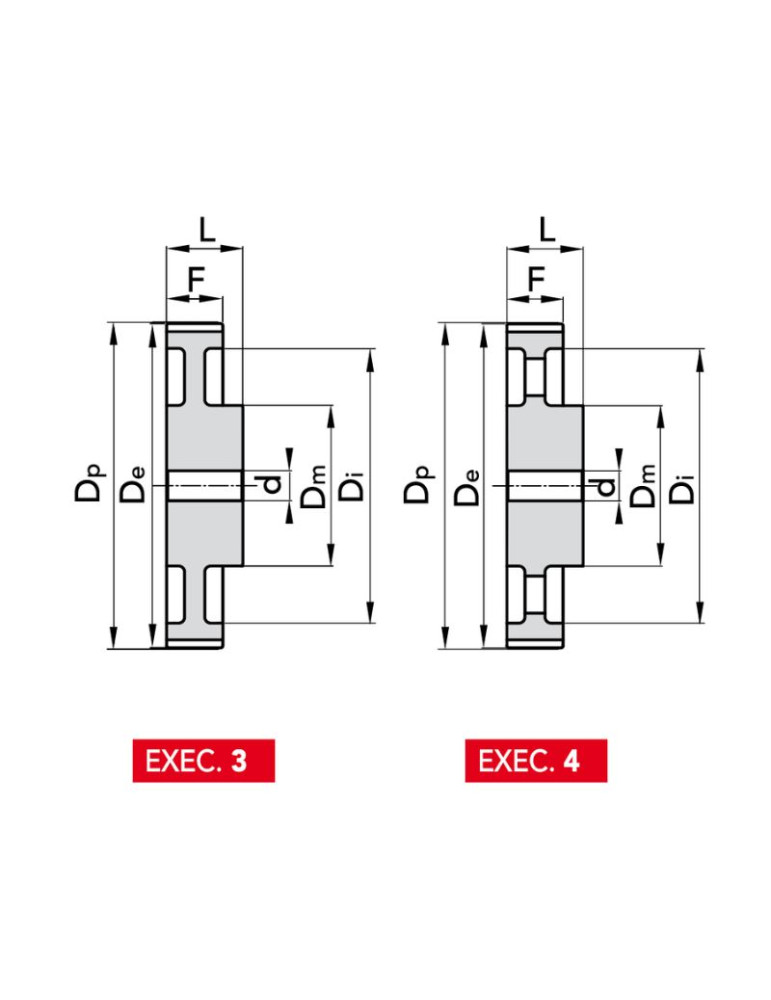

80-8M20	113	80	80-8M20	3	203,72	202,35	-	90	15	fonte	-	€62.38	3.785 kg	Sum.: Sum.:
90-8M20	114	90	90-8M20	4	229,18	227,81	-	90	15	fonte	-	€74.14	4.262 kg	Sum.: Sum.:
144-8M20	115	144	144-8M20	4	366,69	365,32	-	90	20	fonte	-	€104.66	8.658 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
