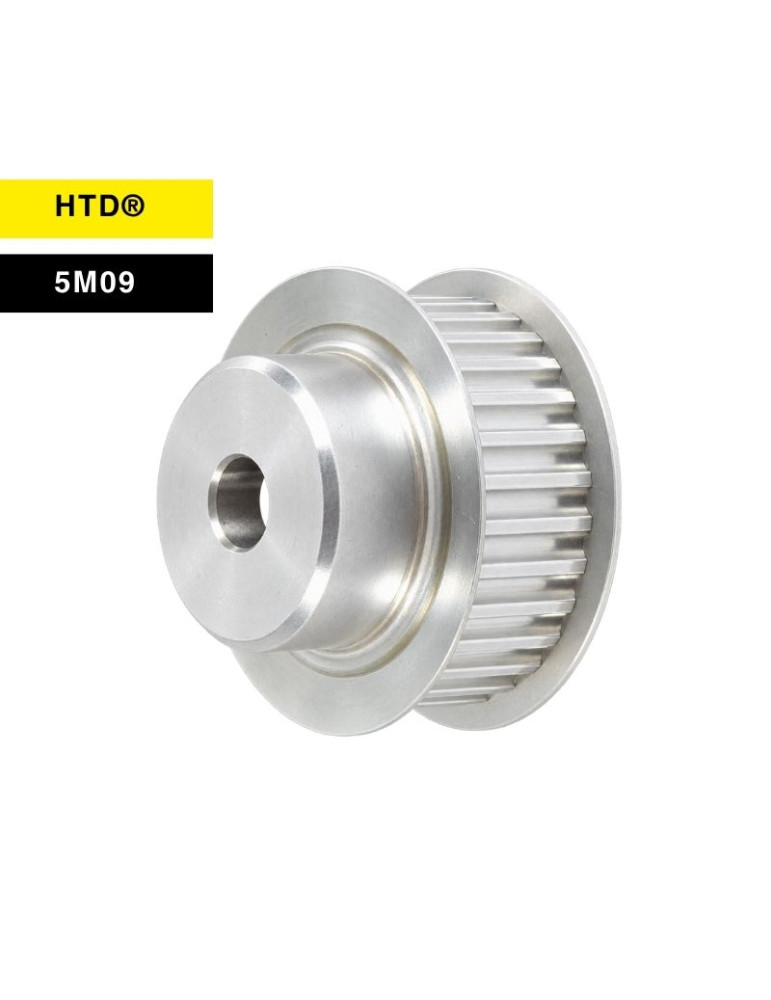

HTD® 5M09 pilot-bore pulley

Description

The HTD® 5M09 timing pulley matches a 5M-profile synchronous belt with a nominal width of 9 mm and a 5 mm pitch.

Comes in 12 to 72 tooth versions.

Choose the tooth count and check the bore to be machined along with your mounting dimensions.

Reference 12-5M09F

Specific References

15 people are viewing this right now

€2.08

Tax excluded

order: 41

Material: acier

CHI-Pièce: Poulie

CHI-Version poulie: HTD

CHI-type1: 5M-09F

CHI-type3: 5M

Type: 12-5M09F

Teeth: 12

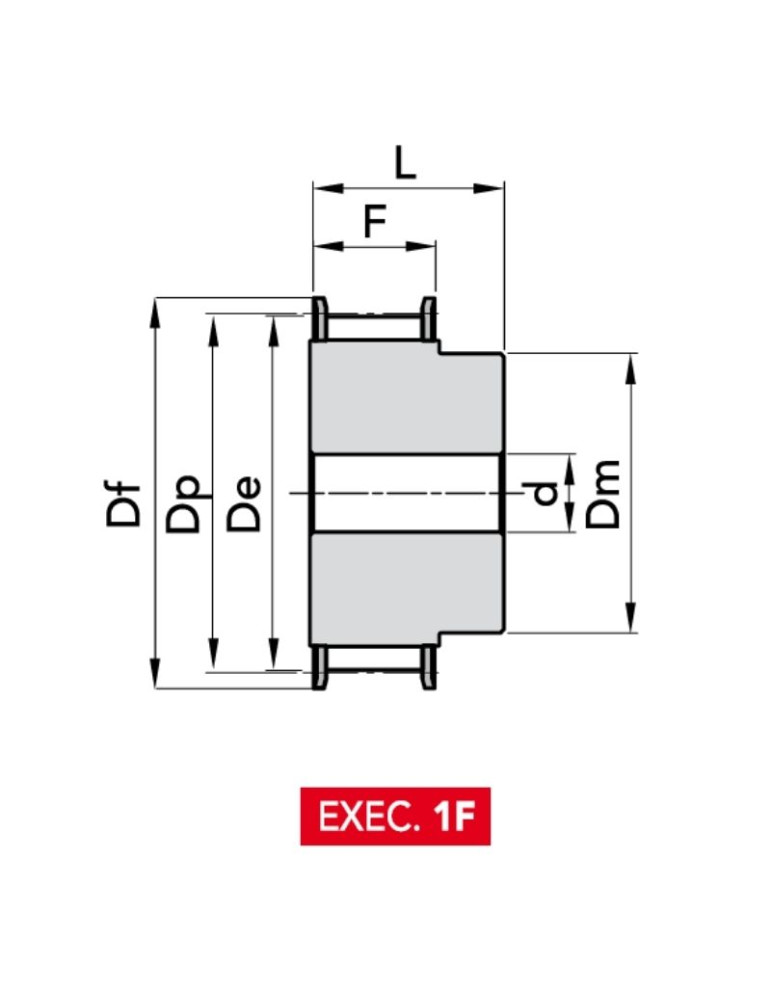

Execution: 1F

Dp: 19,1

De: 17,96

Df flange: 23

Dm: 12

CHI-Di: -

CHI-F: 14,5

CHI-L: 20

d: 4

N° flange: 14

CHI-Flasque: oui

Quantity

Sorry, no items left.

Categories: PULLEYS, HTD® timing pulleys with pilot bore, HTD® 5M Pulleys

Immediate stock

Weekly stock

Platform stock

*Prix HT hors frais d’envoi

Ref.	order	Teeth	Type	Execution	Dp	De	Df flange	Dm	d	Material	N° flange	Unit price	Weight	Buy
12-5M09F	41	12	12-5M09F	1F	19,1	17,96	23	12	4	acier	14	€2.08	0.028 kg	Sum.: Sum.:
14-5M09F	42	14	14-5M09F	1F	22,28	21,14	25	13	6	acier	2	€2.22	0.037 kg	Sum.: Sum.:
15-5M09F	43	15	15-5M09F	1F	23,37	22,73	28	16	6	acier	4	€2.28	0.047 kg	Sum.: Sum.:
16-5M09F	44	16	16-5M09F	1F	25,46	24,32	28	16,5	6	acier	4	€2.40	0.051 kg	Sum.: Sum.:
18-5M09F	45	18	18-5M09F	1F	28,65	27,51	32	20	6	acier	6	€2.52	0.072 kg	Sum.: Sum.:
20-5M09F	46	20	20-5M09F	1F	31,83	30,69	36	23	6	acier	8	€2.90	0.098 kg	Sum.: Sum.:
21-5M09F	47	21	21-5M09F	1F	33,42	32,28	38	24	6	acier	9	€2.98	0.11 kg	Sum.: Sum.:
22-5M09F	48	22	22-5M09F	1F	35,01	33,87	39	25,5	6	acier	15	€3.10	0.123 kg	Sum.: Sum.:
24-5M09F	49	24	24-5M09F	1F	38,2	37,06	42	27	6	acier	13	€3.34	0.143 kg	Sum.: Sum.:
26-5M09F	50	26	26-5M09F	1F	41,38	40,24	44	30	6	acier	12	€3.66	0.172 kg	Sum.: Sum.:
28-5M09F	51	28	28-5M09F	1F	44,56	43,42	48	30,5	6	acier	11	€4.04	0.192 kg	Sum.: Sum.:
30-5M09F	52	30	30-5M09F	1F	47,75	46,6	51	35	6	acier	16	€4.30	0.236 kg	Sum.: Sum.:
32-5M09F	53	32	32-5M09F	1F	50,93	49,79	54	38	8	acier	18	€4.48	0.265 kg	Sum.: Sum.:
36-5M09F	54	36	36-5M09F	1F	57,3	56,16	60	38	8	acier	21	€5.12	0.319 kg	Sum.: Sum.:
40-5M09F	55	40	40-5M09F	1F	63,66	62,52	71	38	8	acier	25	€5.82	0.393 kg	Sum.: Sum.:

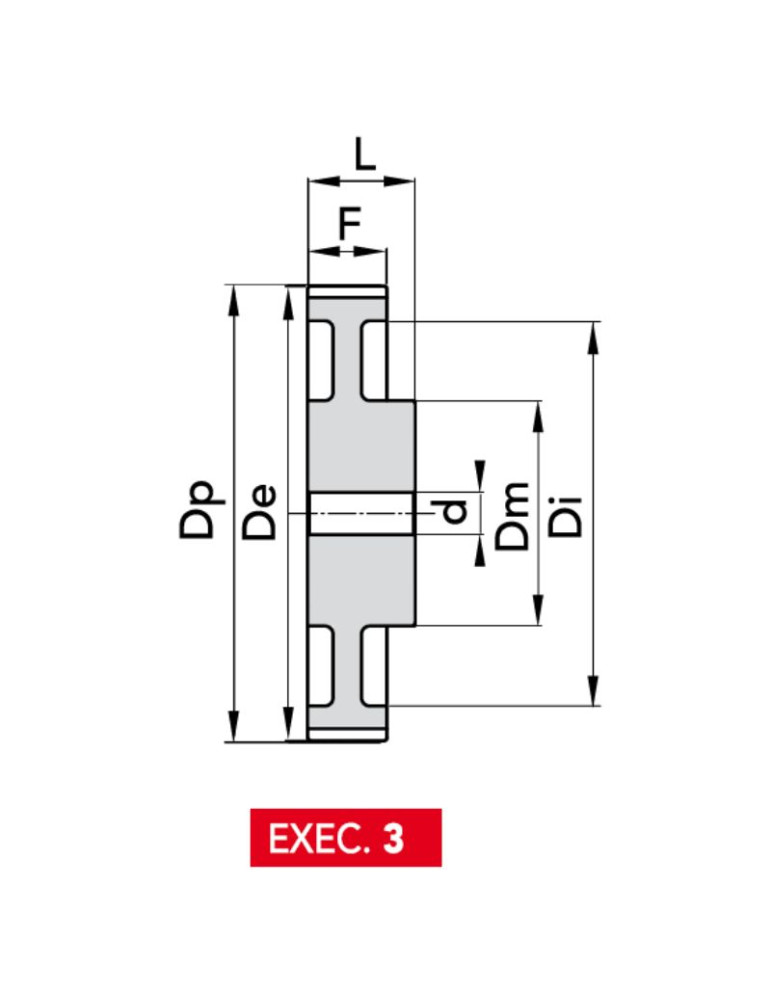

44-5M09	56	44	44-5M09	3	70,03	68,89	-	38	8	aluminium	-	€9.42	0.14 kg	Sum.: Sum.:
48-5M09	57	48	48-5M09	3	76,39	75,25	-	45	8	aluminium	-	€10.68	0.18 kg	Sum.: Sum.:
60-5M09	58	60	60-5M09	3	95,49	94,35	-	45	8	aluminium	-	€16.06	0.225 kg	Sum.: Sum.:
72-5M09	59	72	72-5M09	3	114,59	113,45	-	45	8	aluminium	-	€22.33	0.25 kg	Sum.: Sum.:
Total: 0,0 All prices with tax excluded. Tax rate: 20,0%.
