Round flanged bearing supports UCFC
  • -40%
Round flanged bearing supports UCFC

Round flanged bearing supports UCFC

Description

Bearing without cover and without rear seal

Standard bearing or Long Life bearing: life long lubrication.

MATERIALS:

Housing is made out of PA + glass fiber in black or white colours; chrome steel or stainless steel bearing; greaser made out of nickel plated brass; reinforcement bushings and washers made out of stainless steel AISI 304; gaskets made out of NBR rubber; cover made out of grey RAL 7042 colour polypropylene.

FEATURES:

Full protection of bearing against external agents. Assembly with not shouldered shafts. Maximum shaft alignment error 2,5°.

ON REQUEST:

Versions with body in polypropylene + glass fiber and antibacterial additive; supports with eccentric collar shaft locking with chrome steel bearing; protection covers in different colours and with customized brand; box quantity according to your request; Viton gaskets.

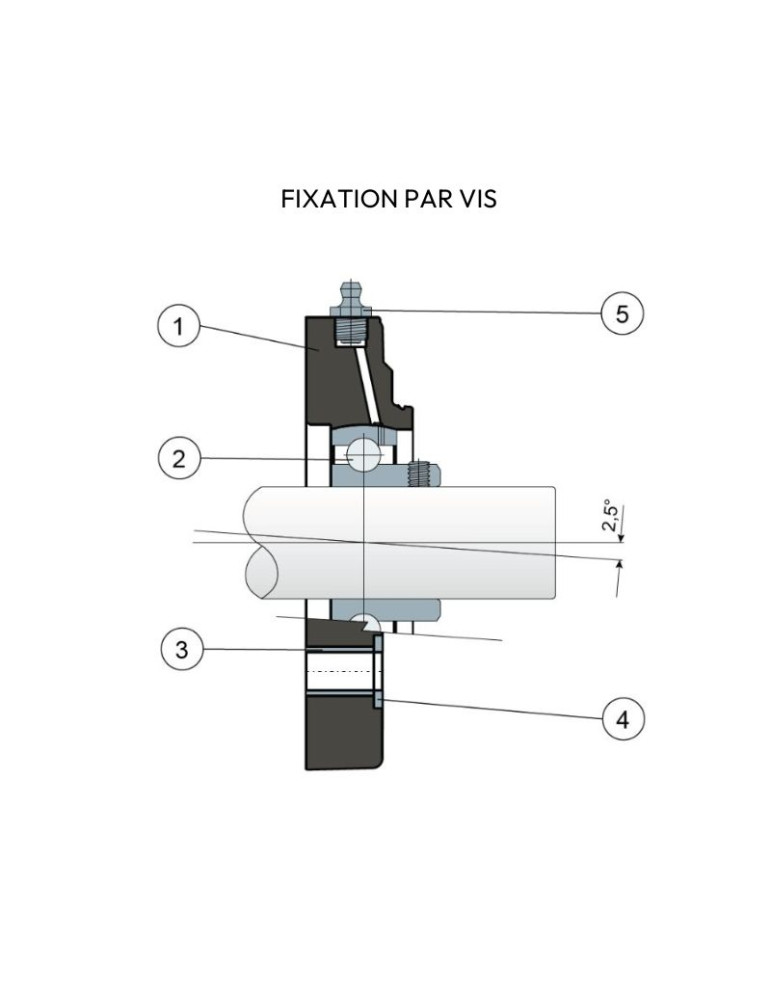

1) Housing made out of black or white colour polyamide reinforced with glass fibers.

2) Back gasket made out of NBR rubber for turning shaft seal.

3) Chrome steel or stainless steel bearing AISI 440.

4) Spacer for fixing reinforcement made out of stainless steel AISI 304.

5) UNI 6592 support washer made out of stainless steel AISI 304.

6) Protection cover made out of polypropylene (grey colour Ral 7042).

7) Front gasket made out of NBR rubber for turning shaft seal.

8) OR gasket made out of NBR rubber.

9) Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass (absent in the versions with Long Life bearing).

N.B.: In the Long Life version, the greaser is absent and the lubrication channel is protected by a rubber cap.

Support dimensions respect ISO 3228 set of rules.

Maximum shaft alignment error 2,5°.

For further information please contact our technical office or sales department.

Product Details
86023

Specific References

  • PAL-UCFC
Attachments

PALIERS UCFC

Download (574.22KB)
DOM
86023
€52.13
€31.28 Save 40%
Tax excluded

Volume discounts

Quantity Unit discount You Save
3 45% €0.00
30 50% €0.00
order: 10
Series: UCFC 207
Bearing material: ACIER AU CHROME
Colors: blanc
Bearing type: Standard

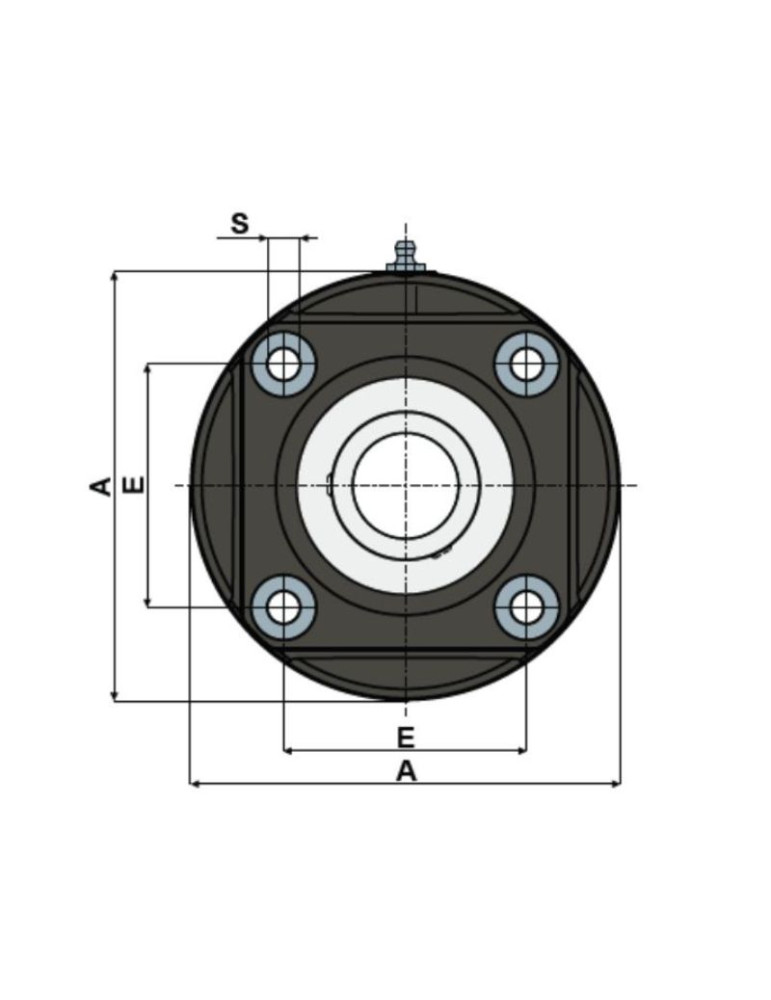

E (mm): 77,8
A (mm): 137
S (mm): 10,5
PAL-G (mm): 26
PAL-I (mm): 17
PAL-Z (mm): 40,8
PAL-U (mm): 56
PAL-T (mm): 58
PAL-Charge roulement C (N): 25500
PAL-Charge roulement C0 (N): 15300
PAL-Charge support (N): 19550
Type of fixation: vis
PAL-D (mm): 35
PAL-Axe de centrage: Oui
Quantity

Sorry, no items left.
BEARING SUPPORTS,  Round flange bearings,  Flanged bearing supports

Choose product attributes:

 Product is available
 Product available on plateform

*Prix HT hors frais d’envoi

Ref. order Series Bearing material Bearing type Type of fixation Colors A (mm) E (mm) S (mm)
1+
Unit price
3+
Up to –45%
30+
Up to –50%
Weight Avail. Buy
85668 1 UCFC 207 ACIER AU CHROME Standard vis noir 137 77,8 10,5 0.65 kg
85670 2 UCFC 207 ACIER AU CHROME Standard vis blanc 137 77,8 10,5 0.65 kg
87641 3 UCFC 207 ACIER AU CHROME Long Life vis noir 137 77,8 10,5 0.626 kg
90394 4 UCFC 207 ACIER AU CHROME Long Life vis blanc 137 77,8 10,5 0.6 kg
85669 5 UCFC 207 INOX 304 Standard vis noir 137 77,8 10,5 0.65 kg
85671 6 UCFC 207 INOX 304 Standard vis blanc 137 77,8 10,5 0.65 kg
90395 7 UCFC 207 INOX 304 Long Life vis noir 137 77,8 10,5 0.6 kg
90396 8 UCFC 207 INOX 304 Long Life vis blanc 137 77,8 10,5 0.6 kg
86021 9 UCFC 207 ACIER AU CHROME Standard vis noir 137 77,8 10,5 0.65 kg
86023 10 UCFC 207 ACIER AU CHROME Standard vis blanc 137 77,8 10,5 0.65 kg
90397 11 UCFC 207 ACIER AU CHROME Long Life vis noir 137 77,8 10,5 0.6 kg
90398 12 UCFC 207 ACIER AU CHROME Long Life vis blanc 137 77,8 10,5 0.6 kg
86022 13 UCFC 207 INOX 304 Standard vis noir 137 77,8 10,5 0.65 kg
86024 14 UCFC 207 INOX 304 Standard vis blanc 137 77,8 10,5 0.65 kg
90399 15 UCFC 207 INOX 304 Long Life vis noir 137 77,8 10,5 0.6 kg
90400 16 UCFC 207 INOX 304 Long Life vis blanc 137 77,8 10,5 0.6 kg
88710 17 UCFC 207 ACIER AU CHROME Standard bague exc. noir 137 77,8 10,5 0.705 kg
88711 18 UCFC 207 ACIER AU CHROME Standard bague exc. blanc 137 77,8 10,5 0.705 kg
90401 19 UCFC 207 ACIER AU CHROME Long Life bague exc. noir 137 77,8 10,5 0.6 kg
90402 20 UCFC 207 ACIER AU CHROME Long Life bague exc. blanc 137 77,8 10,5 0.6 kg
88712 21 UCFC 207 ACIER AU CHROME Standard bague exc. noir 137 77,8 10,5 0.705 kg
88713 22 UCFC 207 ACIER AU CHROME Standard bague exc. blanc 137 77,8 10,5 0.705 kg
90403 23 UCFC 207 ACIER AU CHROME Long Life bague exc. noir 137 77,8 10,5 0.6 kg
90404 24 UCFC 207 ACIER AU CHROME Long Life bague exc. blanc 137 77,8 10,5 0.6 kg
